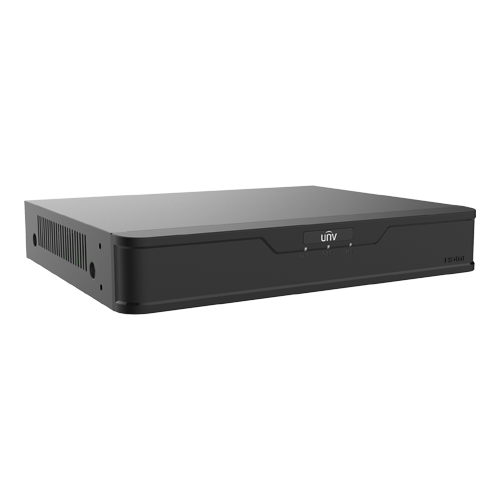

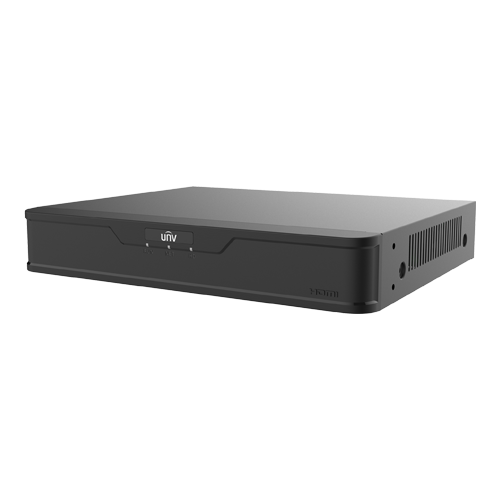

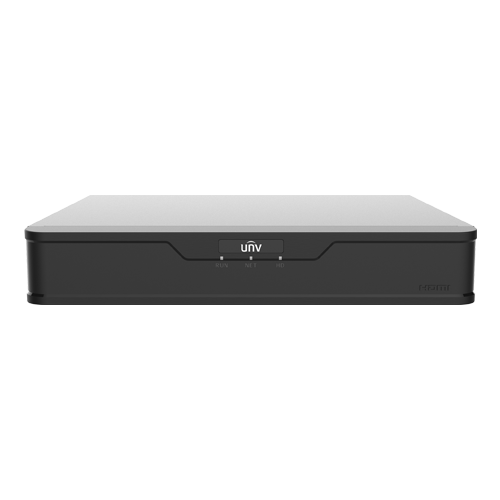

The NVR301-04B-P4-IQ is an Easy Series NVR with the following features:
- 4 independent Plug & Play POE ports
- Ultra 265 technology for efficient video compression
- Compatibility with ONVIF cameras and RTSP protocol
- Independent HDMI and VGA outputs
- Smart features
- ANR technology that stores information when the device is disconnected from the network
- Cloud upgrade option
Technical specifications:
- Model / manufacturer UNV (Uniview)
- Recording 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
- Compression Ultra 265, H.265, H.264
- Bandwidth Input – 80Mbs / Output – 80Mbps
- 1-4 channel synchronized playback
- Decoding capacity 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30
- Video analysis functions (VCA) Facial detection, Intruder detection, Perimeter entry-exit detection, Line crossing detection, Motion detection, Human/vehicle differentiation (UMD), Crowd density monitoring, People counting, Traffic monitoring, etc.
- Storage 1 x HDD max 10TB (not included)
- Video outputs HDMI 4K (3840×2160), VGA (1920×1080)
- External interfaces 1 x USB 2.0, 1 x USB 3.0, 1 x LAN RJ45 10/100Mb
- Audio 1 x IN, 1 x OUT
- PoE 4 independent RJ45 ports 10/100 Mbps per port (802.3at, 802.3af)
- PoE capacity max. 50W (max 30W on a single port)
- Power supply 48V DC/1.35A
- Max. consumption 12W (without HDD)
- Dimensions 260 × 222 × 47 mm, 1U rackmountable
- Weight approx. 2.7Kg (without HDD)
- Operating temperature -10C ~ +55C
