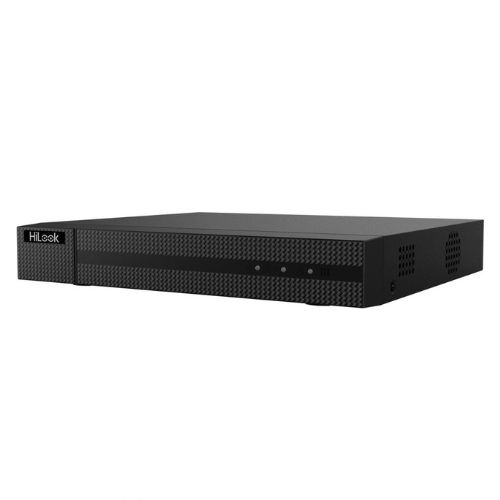

4-Channel Hikvision HiLook NVR NVR-104MH-D(D), 6MP, 40 Mbps, Motion Detection, 1x SATA up to 6TB, HDMI, VGA

HiLook NVR-104MH-D(D) is a 4-channel network video recorder capable of managing IP cameras with resolutions up to 6 MP. It supports an input bandwidth of 40 Mbps and an output bandwidth of 60 Mbps, ensuring smooth data transmission. The device offers simultaneous HDMI and VGA video outputs with a maximum resolution of 1920 × 1080p at 60 Hz. For storage, it features a SATA interface that supports hard drives up to 6 TB. The NVR uses H.265+/H.265/H.264+/H.264 video compression, efficiently optimizing storage space.

Technical Specifications HiLook 4-Channel NVR 6MP 1xSATA – NVR-104MH-D(D):

• Video Input: 4 channels
• Maximum Video Resolution: Up to 6 MP
• Input Bandwidth: 40 Mbps
• Output Bandwidth: 60 Mbps
• HDMI Output: 1 channel, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz
• VGA Output: 1 channel, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz
• Video Output Mode: Simultaneous HDMI/VGA
• Decoding Format: H.265+/H.265/H.264+/H.264
• Recording Resolution: 6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF
• Simultaneous Playback: 4 channels
• Decoding Capacity: 4 channels at 1080p (30 fps) or 2 channels at 4 MP (30 fps)
• Stream Type: Video, Video & Audio
• Remote Connections: Up to 16 connections
• Network Interface: 1 × RJ-45 10/100 Mbps
• SATA Interface: 1 × SATA
• HDD Capacity: Up to 6 TB per drive
• Power Supply: 12 VDC, 1.5 A
• Power Consumption: ≤ 10 W (without HDD)
• Operating Temperature: -10 C to 55 C
• Operating Humidity: 10% to 90%
• Dimensions (L × W × H): 265 × 225 × 48 mm
• Weight: ≤ 1 kg (without HDD)
• Certification: CE EN50130-4, EN 61000-3-2, EN 61000-3-3
