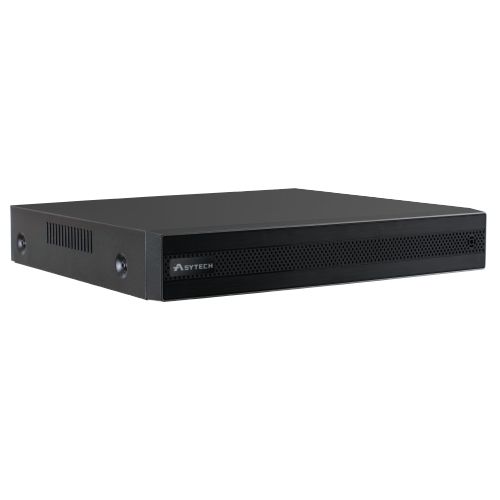

4 channel DVR 1080p Pentabrid Lite – VT series ASYTECH

ASYTECH DVR – 4 channels Pentabrid 1080p Lite
digital video recorder VT-1404HL Series VT ASYTECH is a product with exceptional performance and features that meet any requirement of security.
The main advantages of this recorder (DVR) are:

Recording Mode Lite 1080p / 720p / WD1
Supports 4-room TVI / AHD / CVI / 1080P Analog + 1 IP camera. Basically it is a hybrid device that integrates five technologies in one device. Briefly DVR cameras support both classic (old models in analogue) and the latest generation rooms range TVI, AHD, CVI 1080p / 720p
very intuitive user interface in Romanian language.
Video compression H264
Output video HDMI and VGA simultaneously
video recording quality and speed of image processing which is shown stroking a 1080p Lite

Model / producer ASYTECH
Register 1080p Lite / 720P / 960H / D1 (1-25 / 30fps)
Non-Supported: TVI / AHD / CVI / Analog + 1CH IP 1080P
Playback: synchronized channels 1-4
Input: 4 x BNC; 1 x audio LAN 2xUSB 10/100
Output: Simultaneous VGA HDMI; Audio 1
Main Stream: Lite 1080p / 720p / WD1 / D1
IP Cameras Supported: Asytech Dahua Hikvision ONVIF Axis etc.
Storage: 1 x SATA 6000GB max
Power: 12V DC
Consumption: 5W (without HDD)
Size: 42 mm Ã- 233 Ã- 255
