2MP 2MP surveillance system, full hd, IR40m, 4 Channel 4MP lite DVR, accessories and hardware included

The system contains:

• 2x Rovision Surveillance Camera, Outdoor, 2MP, Full HD, ROVISION2MP22, 2.8mm Lens, 40m IR
• 1x Hikvision DVR, 4 channel, 4MP lite, H. 265+ DS-7104HQHI-K1 (S)
• 2x 10m BNC + DC crimp cable
• 1x YDS 12V 4A power supply
• 1x Splitter 2 outputs
• 1x 500GB Hard Disk

ROVISION2MP22 surveillance camera

The Rovision2MP22 bullet video surveillance camera has a video resolution of 2 Megapixels ( 1920 x 1080 pixels) Full HD , the recordings being made at a high quality, thanks to the fixed 2.8 mm lens that offers a viewing angle of:
diagonal 124.6 °
horizontal 106.4 °
vertical 57.9 °

The camera is equipped with IR LEDs that offer the ability to view images at a distance of 40m at night. It has a degree of protection IP67 that protects the camera from external factors which makes it suitable for outdoor space. Among the special functions, the camera is equipped with BLC , HLC and DWDR. ICR ( IR Cut Filter ) is a filter located between the lens and the image sensor of the surveillance camera and is used to filter excess light. This filter helps the camera to transmit images of good quality and color accuracy. Smart IR is the technology that ensures uniformity of brightness in B / W (Black / White) mode in low light conditions.

Other details:

• 4-in-1 camera with osd button for various technologies: AHD, CVI, TVI, CVBS
• Metal + plastic housing
• Operating temperature ranges from -40 ° to 60 °
• Dimensions: 78, 9mm x 75, 4mm x 216, 6mm
• Weight: 0.32 kg
• Power supply: 12V DC

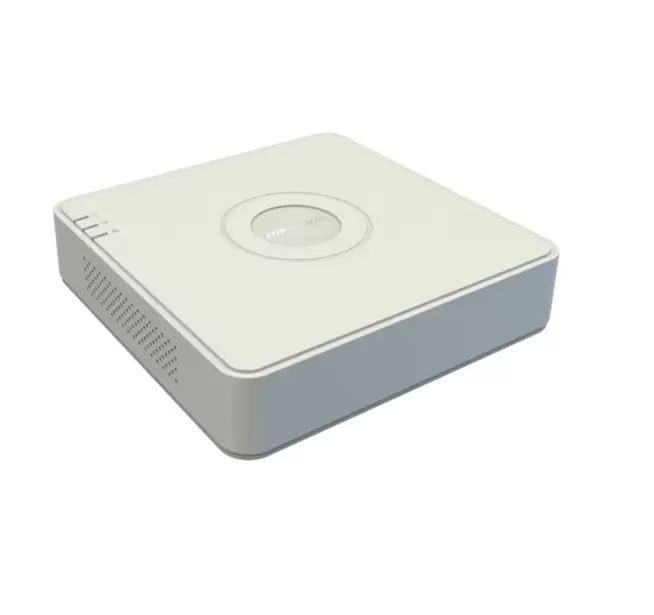

Hikvision DVR, 4-channel, 4MP lite, H. 265+, DS-7104HQHI-K1 (S)

Abbreviated from Digital Video Recorder, it is a device that records the video signal from the surveillance cameras.

Characteristics

• H.265 Pro + / H.265 Pro / H.265 / H.264 + / H.264 compression for main stream and H.265 / H.264 for secondary stream
• Supports 4 analog HD cameras with a resolution of up to 4 MP + 2 IP channels max. 6MP
• 4 coaxial HDTVI audio inputs, 1 analog audio input
• Self-adaptive HDTVI / HDCVI / AHD / CVBS signal input
• Up to 4 MP resolution for recording
• Remote transmission via UTP or coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
• 4-channel synchronous playback

10m BNC + DC crimp cable, power supply and video signal

• BNC + DC
• power supply + video signal
• 2 DC Joint (Female and Male): 5.5 * 2.1mm
• for surveillance cameras
• 4mm thick copper

YDS 12V 4A power supply

• Housing material: plastic
• Color: Black
• Output cable length: 110 mm
• Led output voltage indicator
• 5.5 × 2.1 x 13 mm plug size (Tweezers, 5.5 × 2.1 compatible)
• AC input voltage: 100V-240 V / max 95V-265 V / 50/60 Hz
• DC output voltage: 12 V / Riplu max. : 180 mV
• Maximum DC output current: 4 A
• Short circuit protection, overload
• Dimensions: 108x49x29 mm
• Weight: 340 g

Power splitter cable

• Female entry – 2 Male exits

Hard Disk 500 GB

• Capacity: 500 GB
• Rotation speed: 7200 rpm
• Buffer: 32 MB
• Interface: SATA 3
• Transfer rate: SATA 600 MB / s
• Dimensions (W x D x H): 101.6 x 147 x 26.1 mm
• Weight: 450 g
