Video Surveillance System
Professional Video Surveillance System completely consisting of 4 outdoor cameras with a resolution of 2 MP 1080P full hd IR30m live internet, full, accessories. Possibility to view real-time images from your phone, tablet, PC, laptop (For application and video tutorial click HERE )

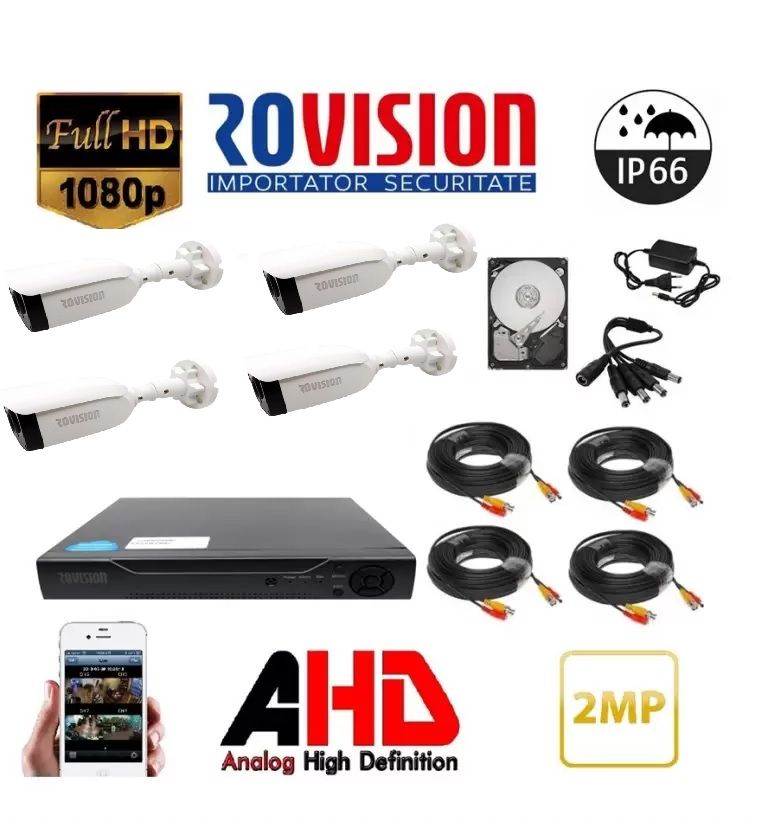

Video surveillance system contains:
– 4 x Outdoor surveillance camera AHD 1080P full hd 30m IR ZAN30W-200
– 1 x DVR 6 IN 1 4 CHANNEL 1080P, 5MP-N ROV504
– 1 x 12V 5A power supply for new model high performance surveillance cameras

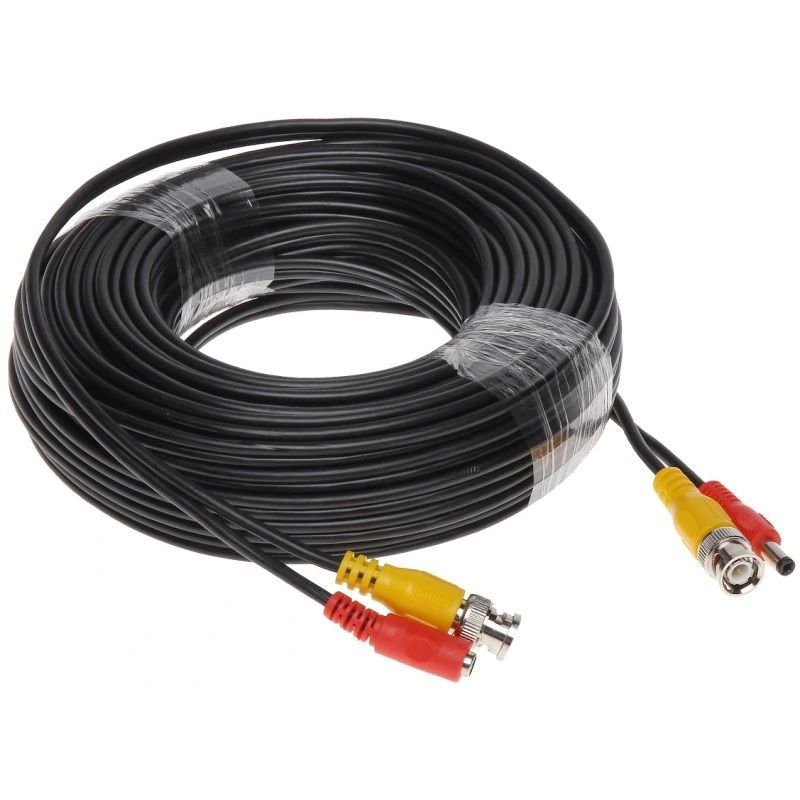

– 4 x Crimped surveillance cable 10 m
– 1 x Power splitter cable 5 male outputs
– 1 x 500GB refurbished HDD
Presentation and assembly of this kit:
Details Video surveillance system:
- ZAN30W-200 is a 1080p full hd outdoor surveillance camera with fixed lens, 30m infrared and 24 led AHD technology. Built on AHD technology, the ZAN30W-200 video surveillance camera is recommended for outdoor installation.
- It is in IP66 weather protection class, being able to operate at temperatures ranging between -20 and +50 degrees Celsius. The camera includes a 1 / 2.9 ”ccd sensor Aptina FH8536 (V30E) + AR0337, the resolution being 1920 × 1080. It can transmit up to a maximum distance of 500m. The camera comes with a 3.6 mm fixed lens, which is useful for areas where objects are far away from the camera.
- This, together with the special construction with metallic plastic housing, recommends the camera for monitoring the entrances in institutions or blocks, parking lots, shopping centers, garages or office buildings. In the construction of the camera we notice 24 LEDs that increase the performance of the camera during the night. The IR sensor allows the visibility of objects in the dark up to 30m.
- The camera also comes with Backlight compensation function, it can compensate for backlighting, optimizing the automatic exposure of the camera. The camera also has an IR-Cut filter function, meaning it offers color images during the day. With daylight dimming, the camera will automatically switch to night mode using infrared light to provide high-quality black-and-white images. We also notice the white balance function for the camera that allows you to adjust the colors so that the colors look as natural as possible.
- The list of functions continues with the presence sensor included, which increases the versatility of the camera. A 12V +/- 10%, 450mA power supply is required for the operation of the monitoring camera. The extremely affordable price makes the camera a safe option for many limited budgets and simple monitoring scenarios.
- Outdoor surveillance camera Weatherproof full hd ZAN30W-200 CRIS 36 200N
- AHD technology
- sensor 1 / 2.9 ″ ccd Aptina FH8536 (V30E) + AR0337
- 1080P / 2MP resolution
- 1920 × 1080
- Minimum lighting 0.01Lux
- transmission distance up to 500 m
- fixed lens, 3.6 mm
- metallic plastic housing
- leds 36 pcs
- infrared distance 30 m
- presence sensor
- white balance
- Backlight compensation
- IR-Cut Filter
- operating temperature -20C + 50C
- power supply 12V ± 10%, 450mA
- Dimensions 82mmx251mm (L)
- Weight 461g
DVR ROV504 5 MP-N 4 channel Rovision 6 in 1 compression H265. Works with any AHD camera up to 5 megapixels.
- Intuitive use by using a graphical interface with icons
- 25fps real-time viewing on each channel at 1080P and 5MP-N resolution on AHD cameras
- 1080P / 14fps recording, 720P / 25fps, 960H / 25fps
- H.265X video compression (reduces file size and allows recording for longer periods)
- HDD storage (up to 6TB)
- Own software for live viewing on the phone through the Cloud using the application downloaded from the Phone Application Store
- VGA and HDMI ports for connection to any TV / monitor
- USB ports for peripherals and for quick USB backup
- RJ45 port for internet connection
- 12V / 2A power supply
- HDD mounting screws
- Installation manual
EFFICIENT DARK CAMERAS Thanks to the state-of-the-art image sensor that works with the integrated IR illuminator, the cameras offer clear and interference-free images even in low or no light.
LIVE MONITORING ON YOUR PHONE / PC / TABLET With a few settings you will have access from anywhere, via the internet, to the video system using any smartphone, tablet, computer. You can watch the cameras live or access the stored recordings.
Professional surveillance kit, very good price-quality ratio, very easy to install and configure, with all accessories included.
* This surveillance system can be easily installed by anyone, even without technical knowledge *
