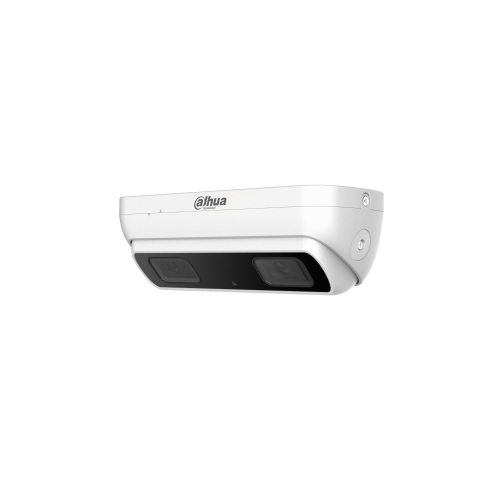

The surveillance camera Dahua IPC-HDW8341X 3D-0280B, IR 10m, Micro SD memory, IP67, PoE

Availability:

Out of stock


Without VAT

903,13

Out of stock

Surveillance camera Dahua IPC-0280B HDW8341X 3D, People Counting, Dual-Lens 2 X 1 / 2.8, 3MP @ 25fps, STARVISTM CMOS H.265 & amp; amp; H.264 encoding triple-stream, 25fps @ 3MP, WDR (120dB), IR 10m, Micro SD memory, IP67, PoE

Image Sensor
Two CMOS progressive scan 1 / 2.8 “3 megapixel

effective pixels
2048 (H) x1536 (V)

RAM / ROM
512 MB / MB 4096

Scanning System
Progressive

Illumination
0.009Lux / F1.8 (lane 1 / 3s, 30IRE)
0.08Lux / F1.8 (color, 1 / 30s, 30IRE)
0Lux / F1.8 (IR enabled)

S / N
More than 50 dB

Distance IR
Distance up to 10m (33ft)

Control IR / On
Auto / Manual

LED IR
1

Goal

Lens Type
Fix

Mounting Type
Board-in

Focal Length
2.8 mm (3.6 mm)

Max. Open
F1.8

The angle of view
H: 106 ° (80 °) V: 80 ° (58 °)

Optical Zoom
N / A

Focus Control
Fix

close focusing distance
0.6 m (0.9 m)

LIKE Distance
Goal
detection
Observer
Recognition
Identification

2.8 mm
45 m (147ft)
18m (59ft)
9m (29ft)
4 m (13ft)

3.6 mm
57m (187ft)
23m (75ft)
11m (36ft)
6m (19ft)

Pan / Tilt / Rotation

Pan / Tilt / Range of rotation
Gradient: -10˚ ~ 70˚

Artificial Intelligence

Number of people
crossing line counting people, people counting area, height filter, filter cutting

General Intelligence

Shutter event
motion detection, video manipulation, changing scenes
Disconnect network IP address conflict, illegal
access, storage abnormality

General Intelligence
Map thermographic

Video

Compress
H.265 / H.264H / MJPEG (secondary stream)

Smart Codec
+ Support H.265 / H.264 +

streaming capacity
3 flows

Resolution
3MP (2048 × 1536) / 1080P (1920 × 1080) / 1.3M (1280×960) / 720P (1280×720) / D1 (704 × 576 / 704×480) / VGA (640×480) / CIF ( 352 × 288 / 342×240)

Frame rate
the main flow: 3MP (1-25fps)

Under Stream 1: D1 (1-25 / 30fps)

Under Stream 2: 6MP (1-7fps only for debugging)

Control bitrate
CBR / VBR

bitrate
H.264: 192 ~ 10240Kbps
H.265: 80 ~ 6144Kbps

Day night
machine (ICR) / Color / B / W

Mode BLC
BLC / HLC / WDR (120dB)

White Balance
Auto / Natural / street light / Outdoor / Manual

Get Control
Auto / Manual

Noise Reduction
3D DNR

motion detection
Off / On (4 zones, rectangle)

ROI
Off / On (4 zones)

Electronic image stabilization (EIS)
N / A

smart IR
A support

defog
N / A

Digital Zoom
16x

flip
N / A

mirror
N / A

Privacy Masking
Off / On (4 zones, rectangle)

Audio

Compress
G.711 / G.711Mu / AAC / G.726

Network

Ethernet
RJ-45 (100 / 1000Base-T)

Protocol
HTTP; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP
FTP; DHCP; DNS; DDNS; PPPoE; IPv4 / v6; QoS; UPnP
NTP; Bonjour; IEEE 802.1x; multicast; ICMP; IGMP; SNMP; TLS

Interoperability
ONVIF Profile S & amp; G, API

Method for Streaming
Unicast / Multicast

Max. User Access
10 users / user 20

Store Edge
NAS
local PC for instant recording
Mirco SD card 128 GB

Web Viewer
IE, Chrome, Firefox, Safari

Software Management
Smart PSS, DSS, DMSS

Smartphone
IOS, Android

Certificates

Certification
EC (EN 60950: 2000)
UL: UL60950-1
FCC FCC Part 15, Subpart B

Interface

Interface Video
1 port (for adjustment)

Interface audio
2/1 channel In / Out (RCA), built-in microphone

485
N / A

alarm
2 channels: 5mA 5VDC
2 channel output: 12VDC 300mA

& nbsp;

Electric

Power Supply
DC12V, PoE (IEEE 802.3af) (Class 0)

Consumption
& lt; 12W

Operating conditions
-30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / 95% RH less

Storage Conditions
-30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / 95% RH less

Protection Input
IP67

vandal resistant
N / A

Building

Case
Metal

Size
204mmx78mmx62mm (8.03 “x3,07” x2,44 “)

Net weight
0.8 kg (1.76 lb)

& nbsp;

SKU: IPC-HDW8341X-3D-0280B Categories: ,
Interfata

Ethernet

Tip lentilă

Fixa, Fixed

Tip cameră

Interior, Inside

Tip

IP POE

Rezolutie video (pixeli)

Full HD

Rezolutie

3 MP (1,5K)

Producatori

Dahua

Material

Plastic

PoE

Da

Lentila fixa

2.8 mm

IR - Infrarosu

10m

Format senzor

1/2.8" CMOS

Manufacturer

Dahua

Resolution

5K)
