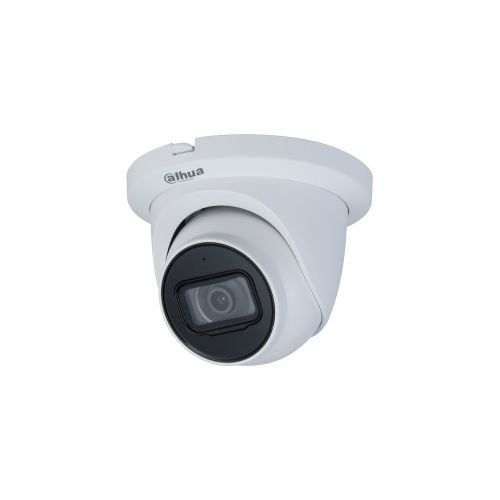

The surveillance camera Dahua IPC-HDW2531T-AS-0280B-S2 IP Dome 5 megapixel CMOS 1 / 2.7 ”, 2.8mm, IR30m, WDR, MicroSD, microphone, IP67, PoE, metal housing
room IPC-HDW2531T-AS-0280B-S2 equipped with a CMOS image sensor of progressive scan 1 / 2.7 “5 megapixel , which will allow to record video with a maximum resolution of 5 MPx . Technology Starlight and correction functions available, including WDR, 3DNR, provide an excellent image. the modern compression H.265 + makes the transmitted signal room occupies less space on the recording medium (ie. HDD), which translates into an effective protection and a longer data retention. In addition goal main camera 2.8 mm enables accurate record of the observed scene and illuminator infrared built with a radius of action of 30m ensures that monitoring 24/7 is performed, while keeping the features and the readability of the records obtained. the advantage of the camera is the fun CTIA intelligent image analysis , which increases security and ensures detection of all unwanted behaviors. The device is characterized by a high degree of resistance to adverse weather conditions (IP67) .
BLC (Back Light Compensation) help view the details of dark objects, and can filter items while very bright. The camera operates at temperatures between -40 and +60 degrees Celsius.
necessary mounting accessories are not included but you can choose from here.
Sensor: 1 / 2.7 inch CMOS Progressive
Resolution 5 Megapixel (2592×1944 pixels)
ROM / RAM 128 MB / 256 MB
Electronic Shutter Speed: 1/3 s-hundred thousandth s
Sensitivity: LUX 0008
IR illumination distance: 30 m
Number of IR LEDs: 2
Pan / Tilt: 0-360 ° / 0-78 ° rotation: 0-360 °
Fixed lens: 2.8 mm
angle of view: 132 °
Minimum Focus Distance: 0.9 m
IVS: Tripwire; intrusion
Video Compression: H.265; H.264; H.264B; MJPEG
Main stream: 2592 × 1944 (1 fps 20 fps), 2688 × 1520 (1 fps 25/30 fps)
Under stream 704 × 576 (1 fps 25 fps), 704 × 480 (1 fps to 30 fps)
The bitrate H.264: 32kbps ~ 8192Kbps, H.265: 12Kbps ~ 8192Kbps
Special Features camera:
Special features: Auto (ICR), BLC, HLC, WDR 120dB Gain Control, 3D DNR, motion detection, ROI (4 zones) IR Smart Mirror, Privacy Masking
Audio Compression: G.711; G.711Mu; G.726; AAC
Network RJ-45 (10/100 Base-T)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; fTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability ONVIF (Profile S / G profiles), CGI, P2P, Milestone, Genetec
Number of visitors: 20
Storage: Cloud Dahua; fTP; SFTP, max 256 GB Micro SD card (not included), NAS
Management Software: Smart PSS; DSS; DMSS
Compatible: iOS, Android
Power supply: 12V DC / PoE (802.3af)
Operating Temperature: -40 to + 60 ° C
Degree of protection IP67
Dimensions: 100.9 x 109.9 mm
Weight: 0.39 Kg
rotary See more room here.
See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
