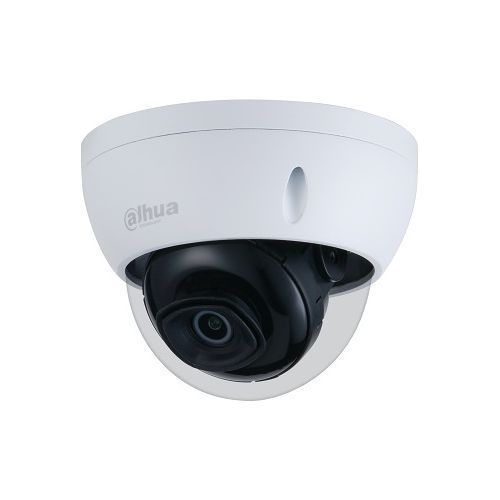

Dahua dome camera with IPC-IP HDBW2231E-S2-S-0280B
IPC-HDBW2231E-S-0280B-S2 is a surveillance camera dome IP from Dahua equipped with a CMOS sensor Progressive 1 / 2.8 inches, which provides a video resolution for 2 megapixel (Full HD – 1920×1080 pixels).
Fixed Lens 2.8 mm enables a viewing angle of 126 ° for monitoring and monitoring of targets. BLC (Back Light Compensation) help view the details of dark objects, and can filter items while very bright. The camera operates at temperatures between -40 and +60 degrees Celsius.
Sensor: 1 / 2.8 inch CMOS Progressive
Video Resolution 2 Megapixel (1920×1080 pixels)
ROM / RAM: 128 MB / 128 MB
Electronic Shutter Speed: 1/3 s-hundred thousandth s
Sensitivity: LUX 0002
IR illumination distance: 30 m
Number of IR LEDs 3
Pan / Tilt: 0-355 ° / 0-65 DEG
Fixed lens: 2.8 mm
Viewing angle: 126 °
Minimum Focus Distance: 0.6 m
IVS: Tripwire; intrusion
Video Compression: H.265; H.264; H.264B; MJPEG
Main stream: 1920 × 1080 (1 fps-25/30 fps)
Under stream 704 × 576 (1 fps 25 fps), 704 × 480 (1 fps to 30 fps)
The bitrate H.264: 32 Kbps, 6144 Kbps; H.265: 12 Kbps, 6144 Kbps
Special features: Auto (ICR), BLC, HLC, WDR 120dB Gain Control, 3D DNR, motion detection, ROI (4 zones) IR Smart Mirror, Privacy Masking
Network RJ-45 (10/100 Base-T)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; fTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability ONVIF (profit / Profile G / T profiles), CGI, Genetec, P2P, Milestone
Number of visitors: 20
Storage: Cloud Dahua; fTP; SFTP, Micro SD card max. GB 256 (not included), NAS
Management Software: Smart PSS; DSS; DMSS
Compatible: iOS, Android
Power supply: 12V DC / PoE (802.3af)
Operating Temperature: -40 to + 60 ° C
Degree of protection IP67, IK10
Size: 81 x 109.9mm
Weight: 0.35 Kg
See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
