Surveillance camera Dahua IPC HFW3441T-ZAS-27135, 4MP, 1/3 CMOS, 2.7 ~ 13.5mm motorized IR60m PoE

Availability:

In stock


Without VAT

197,58

In stock

Bank transfer, Invoice with VAT or no VAT(VIES confirmation), VISA card, Mastercard credit card or cash on delivery. You can pay for your order comfortable cash on delivery in Bulgaria and Hungary. Easy Returns 14 days for return items. We ship from Europe. Shipping cost is starting at 10.64 euros without vat depending on the country and weight.

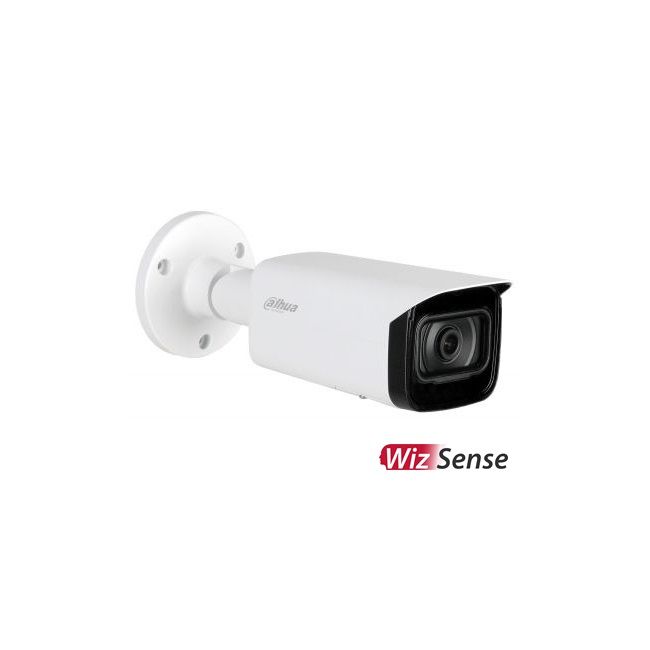

AI IP surveillance camera Dahua IPC-HFW3441T-ZAS Bullet-27135, 4MP CMOS 1 / 3inch, metal housing
Details room:

Network Camera IR Bullet WizSense focus 4 MP
4MP, CMOS image sensor 1/3 “low light, high definition image
Output max. 4MP (2688 × 1520) @ 30 fps
Codec H.265, high compression rate, bit rate low
Built-in IR LED, max. IR distance: 60 m
ROI, SMART + H.264 / H.265 +, coding, flexible and applicable to different widths of tape storage media
rotation mode, WDR 3D DNR, HLC, BLC, digital watermark, apply different scenes monitoring
Intelligent Detection: intrusion, Tripwire (accepted classification and accurate detection of vehicle and human)
abnormality detection: motion detection, video handling, changing scenes, audio anomaly detection without SD card, SD card full SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: In, Out, Audio: In, Out, Supports Max. Micro SD card 256 G
Power 12V DC / POE
protection IP67, IK10 (optional)
SMD Plus

Camera Specifications:

Image Sensor
CMOS progressive 1/3 “4Megapixel

Max. Resolution
2688 (H) x 1520 (V)

rom
128 MB

Aries
512 MB

Scanning System
Progressive

The shutter speed electronic
Auto / Manual 1/3 s – 1/100000 s

Min. Light
0.005 Lux@F1.5 (color, 30IRE)
0.0005 Lux@F1.5 (B / W, 30IRE)
0 Lux (illuminator lit)

S / N
& gt; 56 dB

Distance lighting
60 m (197 ft)

Control on / off illuminator
Auto / Manual

Number illuminator
4 (IR LED)

Pan / Tilt / Range of rotation
Pan: 0 ° -360 °; Tilt: 0 ° -90 °; Rotation: 0 ° -360 °

Goal

Lens Type
Vari-focal motor

Mounting Type
φ14

Focal Length
2.7 mm – 13.5 mm

Max. Open
F1.5

Field of View
Horizontal: 104 ° -27 °
Vertical: 55 ° -15 °
Size: 124 ° -31 °

Type Iris
Fix

close focusing distance
0.8 m (2.6 ft)

LIKE Distance
Goal
detection
Observer
acknowledge
Identify

W
64.0 m (210.0 ft)
25.6 m
(84.0 ft)
12.8 m
(42.0 ft)
6.4 m
(21.0 ft)

T
222.0 m (728.3 ft)
88,8m
(291.3 ft)
44.4 m
(145.7 ft)
22.2 m
(72.8 ft)

Professional, Smart

Perimeter Protection
tripwire; intrusion (human and vehicle recognition)

Smart search
Smart Work with smart NVR to search, retrieval and combining videos events events

Video

Video compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported
after the secondary stream)

Smart Codec
+ Smart H.265 / H.264 Smart +

video frame rate
the main flow (2688 × 1520 @ 1-25 / 30 fps)
the secondary stream (704 x 576 @ 1-25 fps / 704 x 480 @ 1-30 fps)
third stream (1280 × 720 @ 1-25 / 30 fps)

flow capacity
3 flows

Resolution
4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 x 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Control bitrate
CBR / VBR

video transfer rate
H.264 3 Kbps – 8,192 Kbps
H.265: 3 Kbps – 8,192 Kbps

Day night
machine (ICR) / Color / B / W

BLC
Yes

HLC
Yes

WDR
120dB

White Balance
Auto / natural / lamp / outdoor / manual / regional custom

Get control
Auto / Manual

Noise Reduction
3D DNR

Motion detection
OFF / ON (4 zones, rectangular)

region of interest (ROI)
Yes (4 parts)

Intelligent Lighting
Yes

Rotate image
0 ° / 90 ° / 180 ° / 270 ° (Support 90 ° / 270 ° with 1920 × 1080 resolution, and less.)

mirror
Yes

Privacy Masking
4 parts

Audio

Audio Compression
G.711; G.711Mu; G726

alarm

Event Alarm
No SD card; SD card full; SD card error; less time servicing the SD card (smart card support); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video manipulation; scene change; abnormal input; intensity change; Tripwire; intrusion; SMD

Network

Network
RJ-45 (10/100 Base-T)

SDK and API
Yes

Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; fTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; multicasting; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber ​​Security
video encryption; encryption firmware; encryption configuration; Digest; WSSE; account lock; security logs; Filtration IP / MAC; generation and import X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; reliable performance; reliable upgrade

Interoperability
ONVIF (profit / Profile G / T profiles); CGI; P2P; Milestone
Genetec

self-adaptive scene (SSA)
Yes

User / Host
20 (total bandwidth: 64 M)

Storage
FTP; SFTP; Micro SD card (support up to 256 G); NAS

Browser
IE: IE8, IE9, IE11
Chromium
Firefox

Software Management
Smart PSS, DSS, DMSS

Mobile
IOS; Android

Certification

Certificates
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU
FCC: FCC CFR 47 Part 15, Subpart B
UL / CUL: UL60950-1 CAN / CSA C22.2 NO. 60950-1-07

Port

Audio
one channel (port RCA)

Audio output
one channel (port RCA)

Enter alarm
one channel: 5mA 3V – 5V DC

Alarm output
1-channel output: 12V DC 300mA

Power

Power Supply
12V DC / PoE (802.3af)

Consumption
& lt; 9,8W

Environment

Operating conditions
– 30 ° C to + 60 ° C (-22 ° F to + 140 ° F) / less than 95%

Storage Conditions
– 40 ° C to + 60 ° C (-40 ° F to + 140 ° F)

Enclosure
IP67

Structure

Case
Metal

Size
244.1 mm × 79.0 mm × 75.9 mm
(9.6 “x 3.1” x 3.0 “) (L × W × H)

Net weight
820 g (1.8 lb)

Gross Weight
1090 g (2.4 lb)

See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
