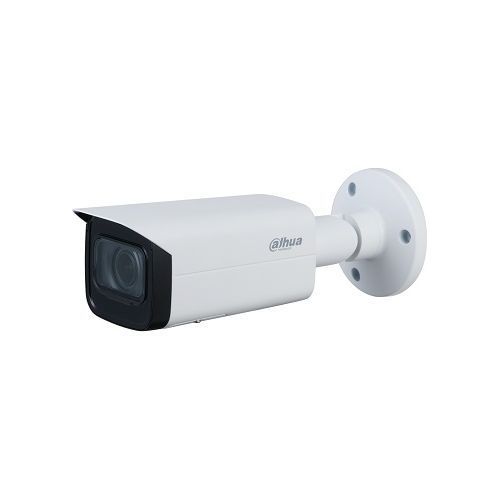

IP Surveillance Camera Bullet Dahua IPC HFW1230T-ZS-2812-S4
DAHUA CPI HFW1230T-ZS-S4 is a surveillance camera digital video IP, which has a maximum resolution of 2 megapixels offered by an image sensor 1 / 2.7 “CMOS image sensor. The camera may be installed both inside and outside (-40 ° … 50 ° C), having a metal casing, the bullet.
Infrared up to 50 meters
Can provide images at night or in low light, at a distance of 50 meters, CPI-HFW1230T-ZS-S4 is equipped with an illuminator Infrared LED IR.
MOTORIZED OPTICAL ZOOM
Camera DAHUA CPI HFW1230T-ZS-S4 is a lens with optical zoom, motorized, meaning a varifocal lens but one that allows adjusting the angle of the remote, the recorder (DVR / NVR), the web interface, the monitoring software or even your mobile phone. It is ideal for monitoring dynamic areas where the need to change the viewing angle often. The focal length can be adjusted between 2.8 and 12.0 mm, providing a horizontal viewing angle between 106.0 ° and 33.0 °.
POE (Power Over Ethernet)
You can power the camera so a power supply, but it provides the function of power through the network cable (PoE), ideal for use with an NVR includes a POE switch.
You can record pictures taken by this camera so a recorder type DVR, NVR, or PC, but you can record on a memory card as CPI-HFW1230T-ZS-S4 allows also install a card, which you can choose from here.
BLC (Back Light Compensation) help view the details of dark objects, and can filter items while very bright.
HLC (Highlight Compensation) created is a function of the need to reduce the intensity of the dazzling light that room can be subject (lights, reflectors, etc.).
Technology Smart IR allows providing clear images in a place with low light or complete darkness and adjusts the intensity of infrared LEDs that compensate object distance. This prevents the LEDs to whiten images as you approach the camera. Integrated infrared camera provides a high performance in environments with extreme low light at a distance of up to 50 m.
+ metal casing is made of plastic, and the degree of protection IP67 is guaranteed by the standard, the camera is rzistenta to dust, rain, etc. The power will be the 12V DC or PoE (802.3af), while the operating temperature is in the range -30 ° C to + 60 ° C.
1 / 2.7 inch CMOS Progressive Scan
2 Megapixels (Full HD – 1920 × 1080 pixels)
RAM / ROM
Electronic Shutter Speed:
1/3 s-hundred thousandth and
IR illuminator distance:
127 ° -38 °
close focus distance:
Pan / Tilt:
Pan: 0 ° – 360 ° Tilt: 0 ° ~ 90 °; Rotation: 0 ° ~ 360 °,
H.265; H.264; H.264H; H.264B; MJPEG
frames / second
Main Stream: 1920 × 1080 (1 fps 25/30 fps)
Under Stream: 704 × 576 (1 fps 25 fps) / 704 × 480 (1 fps to 30 fps)
H.264: 6144 Kbps, 32 Kbps / H.265: 7424 Kbps, 12 Kbps
Day / night
Auto (ICR) / Color / B / W
BLC, HCL, WDR-DWDR Gain Control, 3D DNR, motion detection (4 rectangular areas) ROI (4 zones) IR Smart Mirror 4 rectangular areas private
1x RJ-45 (10/100 Base-T)
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; fTP; DHCP; DNS; NTP; Multicast
ONVIF (profit); CGI; Genetec; P2P
Dahua Cloud; fTP; Micro SD card (max. 256 GB – card not included)
IE, Chrome, Firefox
Smart PSS, DSS, DMSS
iOS / Android
12V DC / PoE (802.3af)
& lt; 6.2 W
-30 ° C – + 60 ° C
244.1 x 90.4 mm ⌀
If you want a complete surveillance here you can choose
See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
