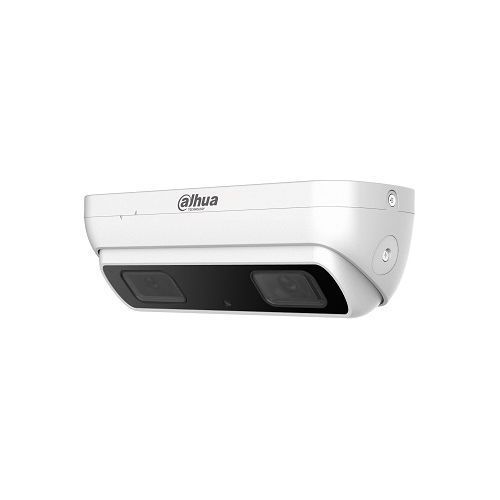

Surveillance camera Dahua IPC-0360B HDW8341X 3D, 3MP camera, 3.6mm, IR 10m, WDR, Microphone, IP67, PoE

Availability:

Out of stock


Without VAT

903,13

Out of stock

Surveillance camera Dahua IPC-0360B HDW8341X 3D, 3MP camera, 3.6mm, IR 10m, WDR, Microphone, IP67, PoE
Camera DH-IPC-HDW8341X 3D is a modern solution used in video monitoring structures. The device is part of the innovative Deep Learning AI Dahua that allows you to record smooth images of places and objects for monitoring 24 hours. IP camera series Deep Learning Series use the most advanced technology of artificial intelligence, including an algorithm for deep learning that focuses primarily on people, offering greater flexibility and precision users.
The most important camera parameters
Chamber AI DH-IPC-HDW8341X 3D is equipped with two image sensors for high-performance 1 / 2.8 “3MP sensor progressive scan CMOS that will allow to record video at a maximum resolution of 3MPx . adjustment Features available including WDR, 3DNR, modern compression system H.265 + i means it signal from the occupancy less space on the recording medium (eg. HDD or microSD), which translates into an effective protection and a longer data storage. illuminator infrared built with a radius of action of 10 m guarantee monitoring around the clock, while preserving the particularity and legible records obtained. in addition technology AI function counting people increases security and plays an important role in marketing activities. the advantage dispozitivulu and it is also a built-in slot microSD card (128 GB), mic I / O alarm. Camera HDW8341X IPC-3D characterized by a high degree of resistance adverse weather conditions ( IP67 ).

Camera Specifications:

Sensor: 2x 1 / 2.8 inch CMOS Progressive Scan
Resolution: 3MP (2048×1536) / 1080P (1920×1080) / 1.3M (1280×960) / 720P (1280×720) / D1 (704×576 / 704×480) / VGA (640×480) / CIF (352×288 / 342×240)
Effective pixels: 2048 x 1536, 3MP
RAM / ROM: 512MB / 4096MB
Sensitivity 0.009Lux / F1.8 (Color 1 / 3s, 30IRE) 0.08Lux / F1.8 (Color, 1 / 30s, 30IRE), 0Lux / F1.8 (IR on)
S / N ratio: & gt; 50 dB
IR illuminator distance: 10 m
Number of IR LEDs: 1
Fixed lens: 2.8 mm (3.6 mm)
Aperture: F1.8
Digital Zoom: 16x
angle of view: 106 ° (80 °), 80 ° (58 °)
Technology: Starlight Video Metadata
frames / second 30 FPS
streaming capacity: main stream under stream1 under stream2
streaming method: unicast / multicast
electronic shutter speed: Auto / Manual 1/3 was one hundred thousandth and
Number of persons: overcoming line, the indicated filter high filter loitering
Trigger event: motion detection, video manipulation, changing environment, network disconnection, IP address conflict, illegal access, storage abnormalities
Special features: Heatmap, CBR / VBR, Day / Night Auto (ICR) / Color / B / W, BLC / HLC / WDR (120dB), AWB, AGC, 3D DNR, motion detection (4 zones), the of interest (4 zones) Privacy masking (4 zones), Smart IR
Network: 1x RJ-45 (100/1000 Base-T)
Protocol: HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, PV4 / v6, QoS, UPnP, NTP, Bonjour, IEEE 802.1x, Multicast , ICMP, IGMP, SNMP, TLS
Number of visitors: 10/20
Intercompatibilitate: ONVIF Profile S & amp; G / Profiles API
Capacity: NAS, PC, microSD card of up to 128 GB ( card is not included )
Management Software: Smart PSS, DSS, DMSS
Compatible: iOS, Android
Video Interface: 1 port (for adjustment)
Audio In / Out: 2/1
Integrated microphone
Input / Output alarm: 2/2
Protection grade IP67
Housing: metal
Power: DC12V, PoE (IEEE 802.3af), power supply is not included
Consumption: & lt; 12W
Operating Temperature: -30 ° C to + 60 ° C
Humidity: ≤95% RH
Dimensions: 204 x 78 x 62 mm
Weight: 800 g

See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
& nbsp;
SHEET TECHNICAL
INSTALLATION GUIDE

Producatori

Dahua

Manufacturer

Dahua

Tip lentilă

Fixa, Fixed

Tip cameră

Interior, Inside

Rezolutie

3 MP (1,5K)

PoE

Da

Material

Metal

Lentila fixa

3.6 mm

IR - Infrarosu

10m

Resolution

5K)
