PoE IP surveillance system 4 cameras UNV Starlight 4MP 2.8mm, Audio, SDcard, IR 50m, NVR 4 PoE channels, accessories

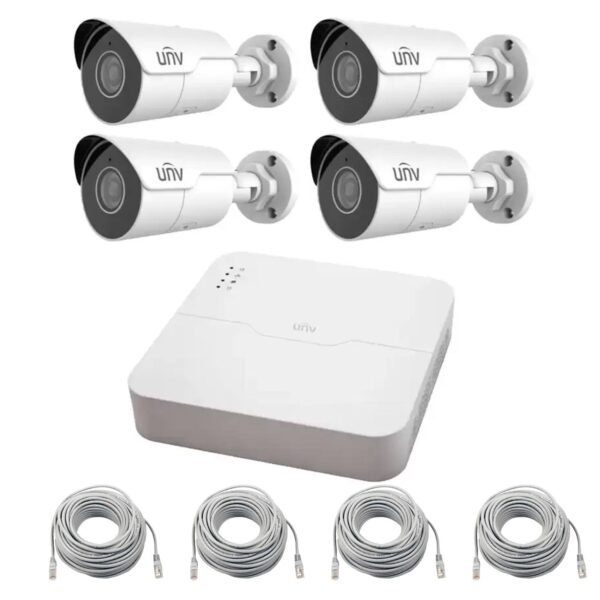

The system contains:

• 4x PoE IP Camera 4MP Starlight, 2.8mm lens, IR 50m, Audio
• 1x NVR 4 channels 8MP
• 4x Patchcord UTP cable cat5 20 meters

PoE IP camera 4MP Starlight, 2.8mm lens, IR 50m, Audio

UNV POE video surveillance camera, from the EasyStar series, IP transmission, equipped with a 1/3″ sensor of 4 mega pixels with the “Progressive Scan” function that offers you a clear and high-quality image, managing to capture color images and in low light conditions, which allow the identification of objects in a natural way based on a last generation ULTRA – H.265 compression, Ultra-H.265 compression, smart IR with a distance of up to 50 meters at night, the lens of 2.8 mm that offers a visibility angle of up to 101.1°, integrated high-fidelity microphone, maximum 256GB microSD storage option (not included), integrated PoE, 4kV electric shock protection.

Model / manufacturer: UNV (Uniview)
Sensor: 1/3′ progressive scan 4.0 megapixel CMOS
Resolution: 4MP@25fps (2688×1520) 3MP/1080P/720P
Lens: 2.8mm@F1.6 viewing angle 101.1°
Compression: Ultra 265 H.265 H.264 MJPEG
Minimum illumination: EasyStar – Color: 0.003 Lux (F1.6 AGC ON) 0 Lux with IR on
IR distance: 50 meters IR-CUT filter with AUTO-switch
Power supply: 12 V DC ± 25% PoE (802.3af)
Consumption: max. 6W
Operating temperature: -30°C ~ +60°C IP67
Dimensions: 190×73×71mm
Weight: 450 gr.
Network interface: RJ45 10/100Mbps
WDR: 120dB
Audio: Integrated high-fidelity microphone
Local recording: MicroSD max 256GB (not included) ANR function

NVR 4 channels 8MP

Network video recorder NVR301-04LS3-P4 is a product with exceptional performance and options that satisfies any security requirement. It supports 4 IP 4K channels with a resolution of up to 8 MP and a number of 30 frames/sec for each camera.

The main advantages of this recorder (NVR) are:

• PoE switch 4 ports 10/100 Mbps integrated, capacity 54W total (13.5W per port).
• Long PoE – 250 meters data and power supply on utp cat 5e/6e cable, (for UNV IP cameras in Advance and Project offices)
• Integrated video analysis (VCA) functions: Counting people, facial detection, audio detection, intruder detection, line crossing, etc.;
• The quality of the video recording and the speed of processing the image that is rendered in cursive at a 4K UHD resolution;
• It supports video surveillance cameras from the IP range, with resolutions up to 8MP at a rate of 30FPS.
• The visualization software for PC and mobile developed by engineers and which is constantly updated to offer new dedicated functions.
• Device management through EZCloud, remote upgrade for NVR firmware and IP cameras;
• Advanced security against cyber attacks.

Model / manufacturer: UNV (Uniview)
Recording: 4K/6MP/5MP/4MP/3MP/1080p/960p/720p
Bandwidth: input 64Mbs / output 48Mbs
Playback: 1-4 synchronized channels
Inputs / outputs: HDMI 4K UHD (3840×2160) VGA 1080P simultaneously 2 x USB 3.0 LAN 10/100Mb 1 x audio out
Storage: 1 x HDD max 8TB
Compatible IP cameras: UNV ASYTECH HIKVISION Dahua Arecont Vision AXIS SONY PELCO BOSH VIVOTEK ONVIF etc.
PoE switch: 4 RJ45 10/100 Mbps ports per I”m wearing
Power supply: 48V DC Consumption: 9W (without HDD)
Dimensions: 205 x 205 x 42 mm
Weight: 600 gr (without HDD)
Compression: Ultra 265 H.265 H.264
Video analysis functions (VCA): People counting / Facial detection / Intruder detection / Line crossing detection / Audio detection / Defocus detection / Scene change / Auto tracking
PoE capacity: 54W (13.5W per port)

Patch cord UTP cable cat5 20 meters

• Patchcord cable UTP CAT5 20 meters 24 AWG
• Gray color
• UTP RJ45-RJ45
• Length 20 meters
