Surveillance Kit 1 outside room full hd
Surveillance Camera Resolution
Full HD 2-2.4 MP
Number of rooms / kit
Type surveillance kit
IR – Infrared
Hybrid 5 in 1
More details kit video surveillance
Kit complete professional video surveillance one metallized plastic casing outer chamber HD IR fixed lens 3.6 mm 20 m

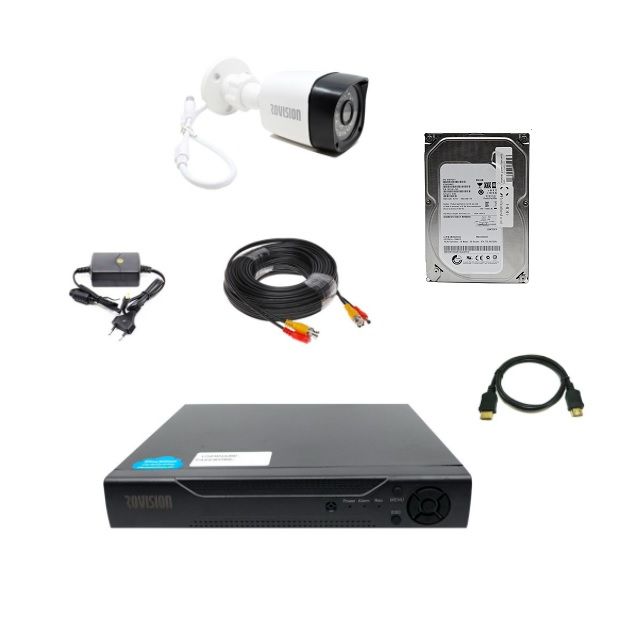

video surveillance kit contains:
– 1 x outdoor surveillance cameras 1080P full HD 20m IR AHD
– 1 x DVR ROV504 Rovision 5 megapixel N 4 channels 6 in 1 H265 compression
Crimping surveillance cameras -1 x 20 meter cable with two DC joint (Female and Male)
-1 x Power supply 12V 2A wired power supply LED indicator and protective filter
-1 x HDMI cable (GIFT)
(Kit does not contain Saved HDD storage, it can be purchased separately HERE )

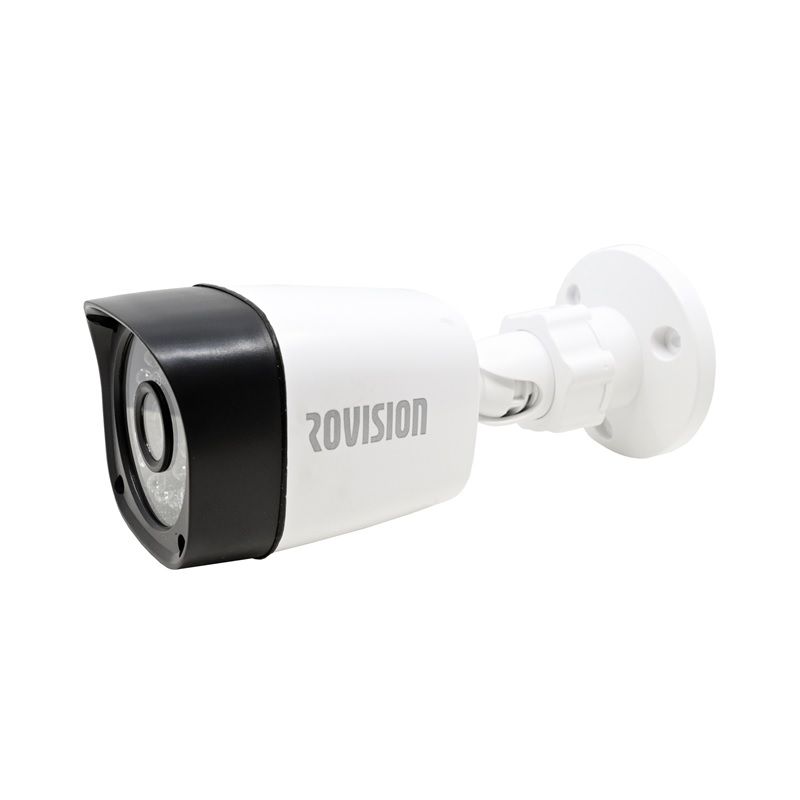

SURVEILLANCE CAMERA FULL HD 1080P 20M AHD EXTERIOR IR
Building on AHD, surveillance camera videoeste suitable for outdoor installation. It’s class IP66 weather protection , which can operate in temperatures ranging between -20 to +50 degrees Celsius.
The camera sensor includes a 1 / 2.9 ” CCD Aptina FH8536 (V30E) + AR0337, resolution is 1920×1080 . It can transmit up to the maximum distance of 500m.
The camera comes with 3.6 mm fixed lens, which is useful for areas where objects are far away from the camera. This special frame construction with plastic metallic recommend room monitoring inputs in institutions or buildings, parking lots, shopping centers, garages and office buildings.
room construction remark that improve performance LEDs 24 of the chamber during the night. IR sensor allows visibility of objects in the dark up to 20m .
The camera comes with the Backlight compensation , it can compensate for background lighting, the camera automatically optimizes exposure. Camera also IR-Cut filter , that provides color images during the day. With the decrease in light during the day, the camera automatically switches to night mode using infrared light to provide black and white images of high quality.
We note function white balance camera that allows color adjustment so that the colors look more natural.
List functions continue with presence sensor included , which increases versitilitatea room.
is needed 12V +/- 10%, 450mA for monitoring the operation of the camera. Power supply is not included, but extremely affordable price turn into a safe room for more limited budgets and simple monitoring scenarios.
Surveillance Camera Outdoor Weatherproof HD-200 ZAN30W CRIS 36 200N
Sensor 1 / 2.9 “CCD Aptina FH8536 (V30E) + AR0337
resolution of 1080P / 2MP
Low illumination 0.01Lux
transmission distance up to 500 m
fixed lens, 3.6 mm
metallic plastic casing
LED 24 pcs
IR distance 20 m
IR Cut Filter
Operating temperature -20C + 50C
10% ± 12V, 450mA
power supply is not included
Size 82mmx251mm (L)

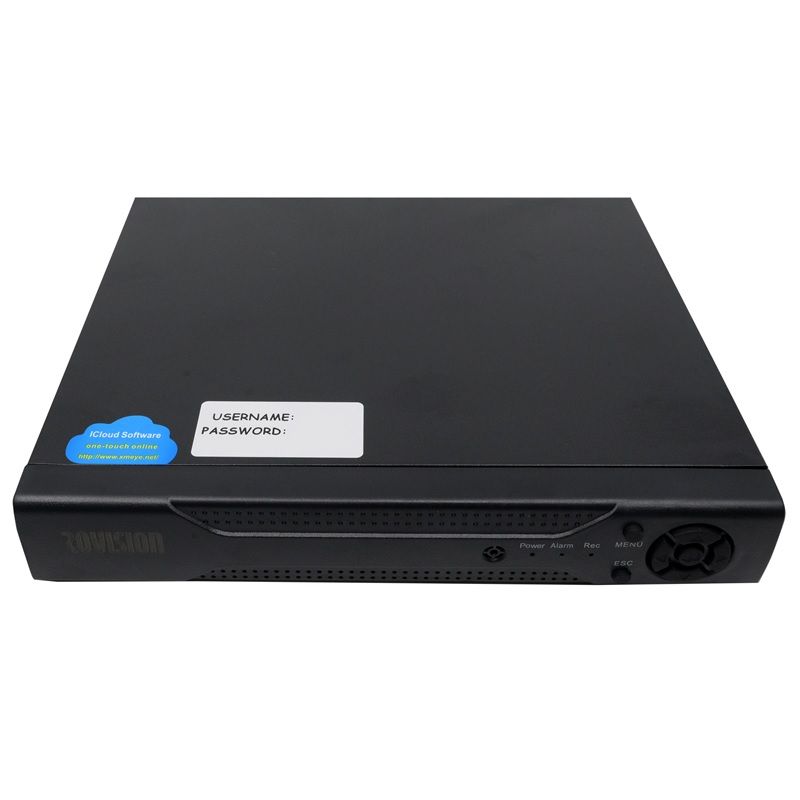

5 megapixel ROV504 DVR technology AHD-N 4 channels 6 in 1 Rovision H.265 compression. works with a camera AHD up to 5 megapixels.
using an intuitive graphical interface icons
View real-time 25fps per channel at 1080P resolution and 5MP cameras AHD-N on all channels
Register 1080P / 14fps, 720P / 25fps, 960H / 25fps
Video compression H.265X (reduce file sizes and enable longer periods)
Storage HDD (up to 6TB) is not included
own software for live viewing on your phone by using the Cloud application downloaded from the app store for the phone
Ports VGA and HDMI for connecting to any TV / monitor
USB ports for peripherals and fast backup USB
RJ45 port for connecting to the Internet
Power 12V / 2A
Bolts for fixing HDD
Power 12V / 2.5A
Power consumption & lt; 15W (faraHDD)
Working Environment: Temperature: 0 ℃ – + 55 ℃, Humidity: 10% -90%, Atm: 86kPa-106kPa
Size 233x210x45 mm
Weight 510 g (without HDD)
Works with any cameras up to 5 megapixels AHD

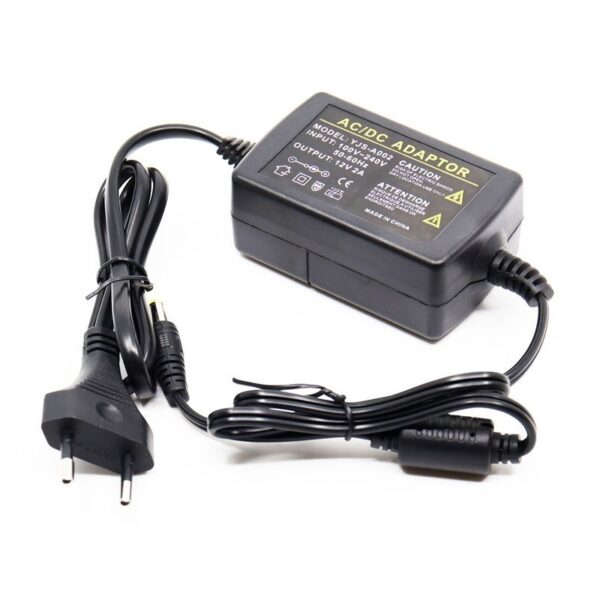

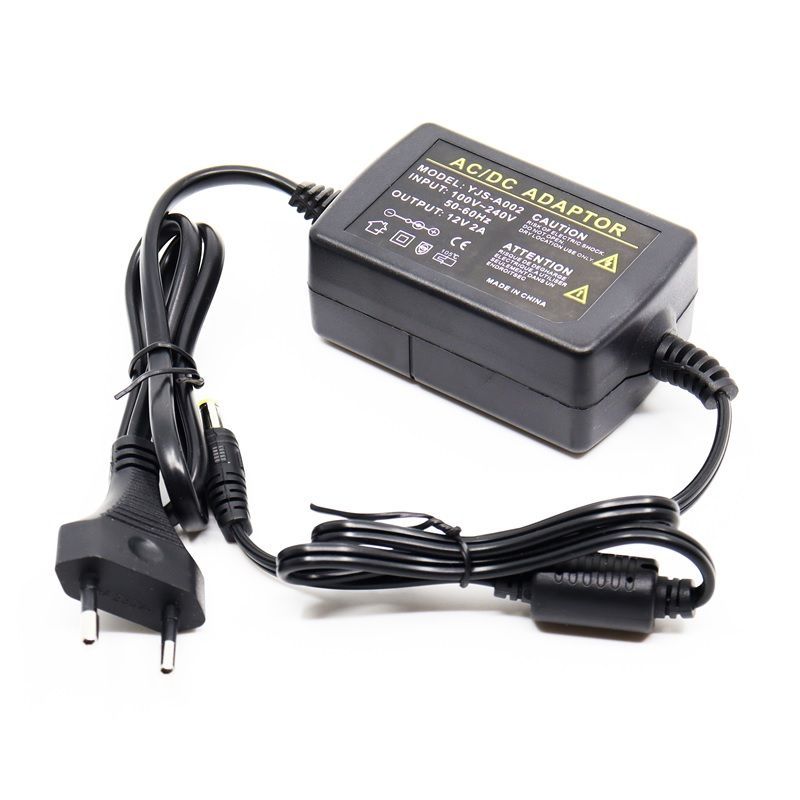

POWER SUPPLY 12V 2A wired LED INDICATOR POWER SOURCE AND FILTER PROTECTION
Input voltage: 90-240AC, 50-60Hz
Output voltage: 2A
Cable length: 100CM
Overload protection, overvoltage, short-circuit
Power supply 12V 2A is the most common option regarding powered cameras voltage 12VDC. This is not only the variant solar or wireless monitoring cameras batteries are common choices.
This 2A power supply / 12V on the line filter has an input voltage of 90-240V, 50-60Hz. Its output voltage is 2A.
The cable has a length represented by 100cm . The power supply has overload protection, short-circuit and over-voltage .
These power supplies are capable of meeting the energy needs of video surveillance cameras. Some models cameras Video 12V DC need specific configuration: 1Amp 2 AMP 5 AMP or more.

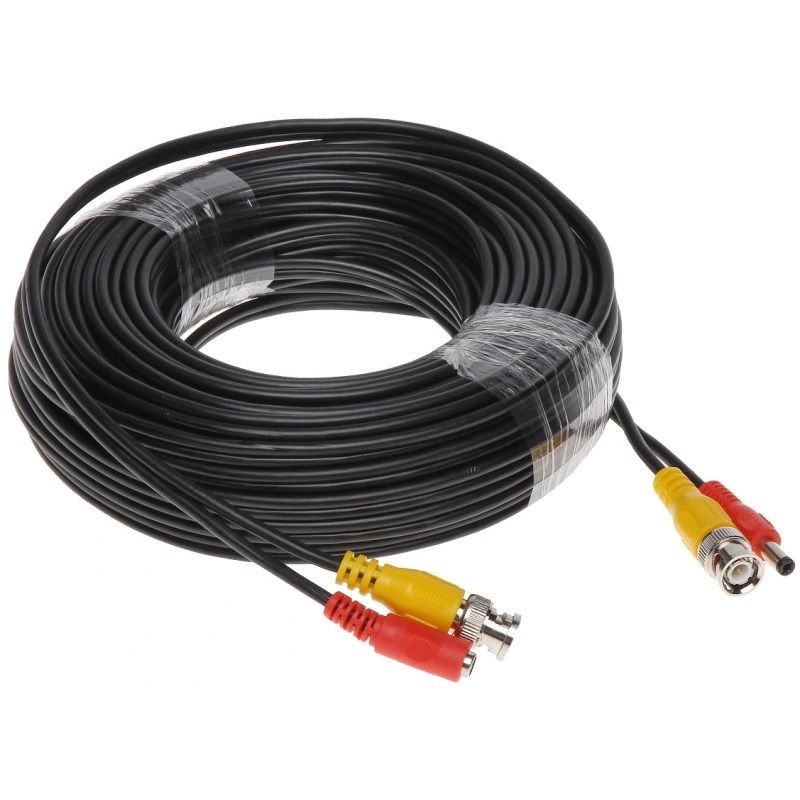

crimping CABLE signal and power
– BNC cable DC 20M
– thickness 4.0 mm
– Material: oxygen-free copper BNC DC (male / female)
GIFT HDMI Cable high speed technology including 1080p resolution 4K, 3D, 14400 colors.
HDMI Ethernet Channel Audio Return Channel over HDMI 3D 4K x 2K resolution support. The HDMI cable connects your TV or laptop DVR and view live image in Full HD.
System plug and play easy to install.
You can add another 3 rooms any technology until 2 megapixels. The DVR comes with manual installation including mobile phones.
Soft free mobile viewing.
video surveillance sticker Add Rovision
