Kit 4 video surveillance cameras mixed
Technical Surveillance Kit 4 rooms combined:
Surveillance Camera Resolution
Full HD 2-2.4 MP
Number of rooms / kit
Type surveillance kit
IR – Infrared
Number Channel DVR
Other camera functions
More details Kit 4 video surveillance cameras mixed

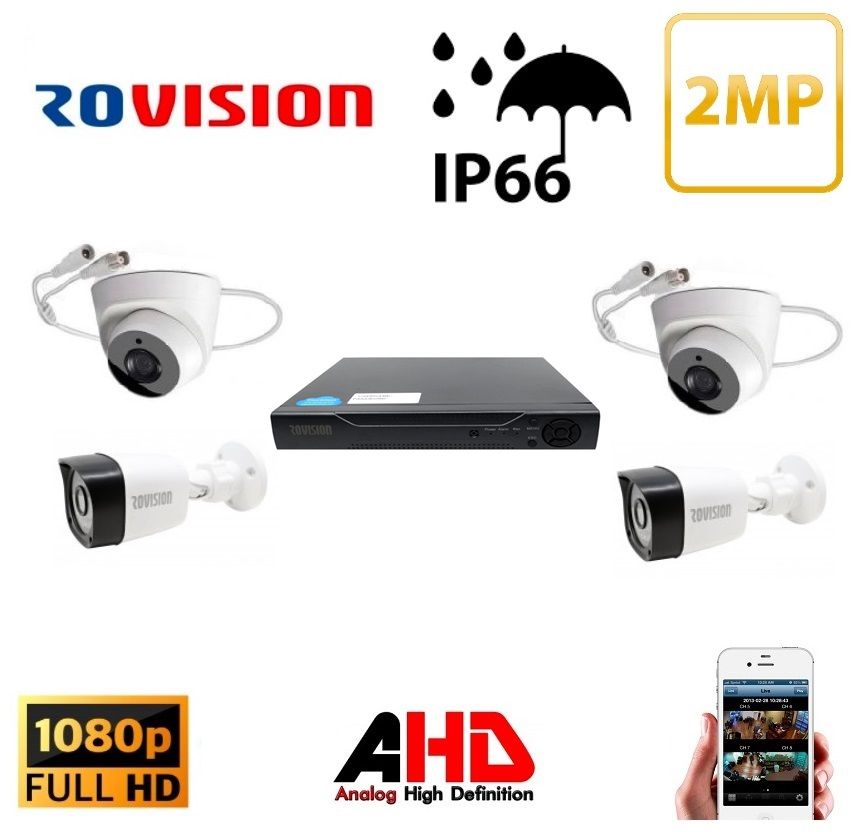

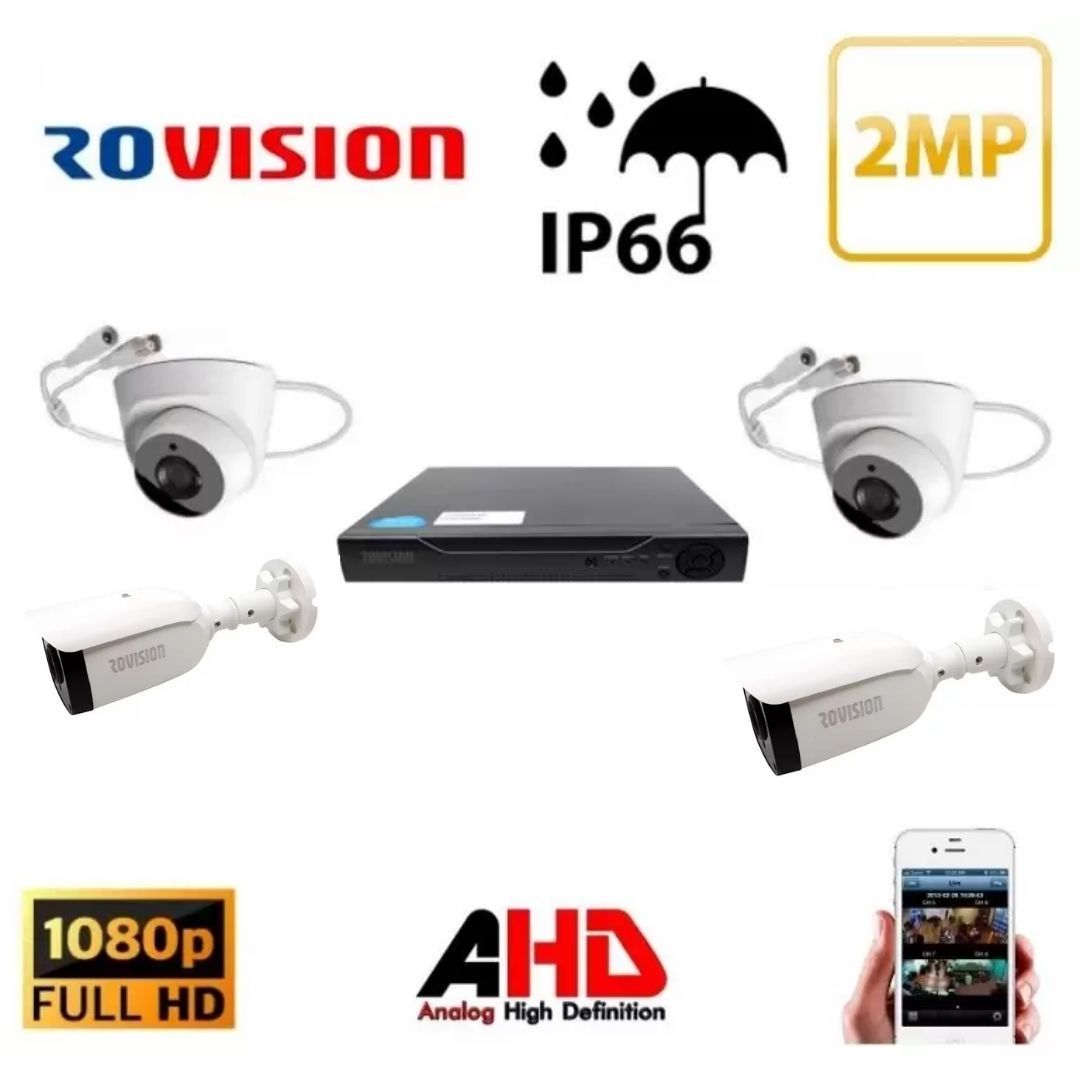

System Video Surveillance professional, consists of 4 rooms, 2 outdoor with a resolution of 2 MP 1080P Full HD IR 20m and 2 inside resolution 2MP IR20m, possibility of viewing images in real time from your mobile phone, PC , laptop, etc. CLICK- & gt; useful applications DVR INTERNET CONNECTION AND

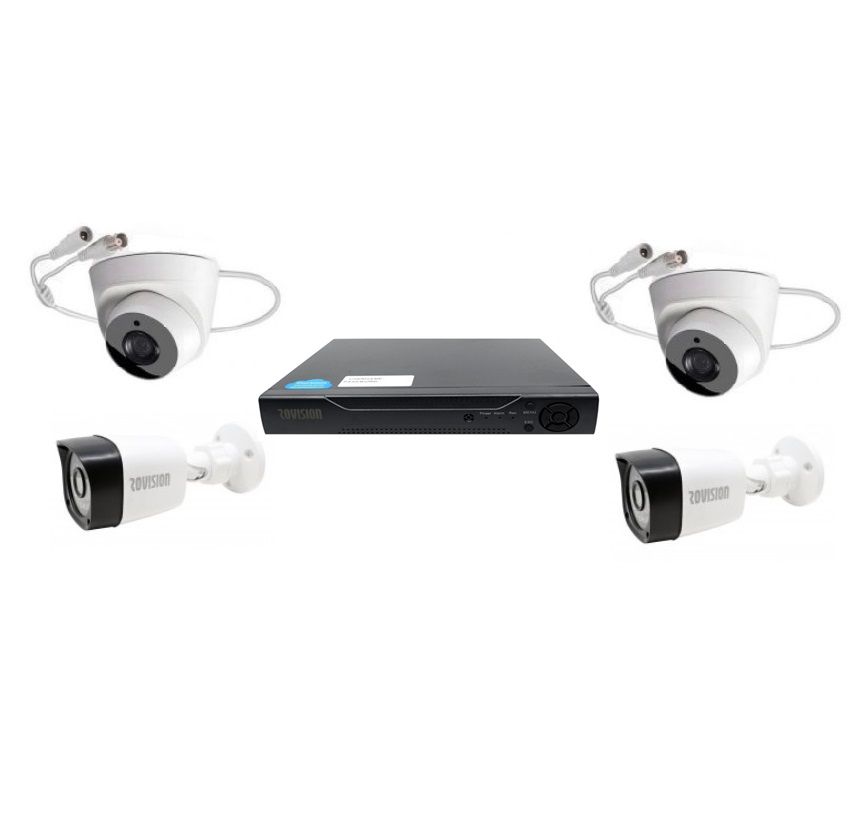

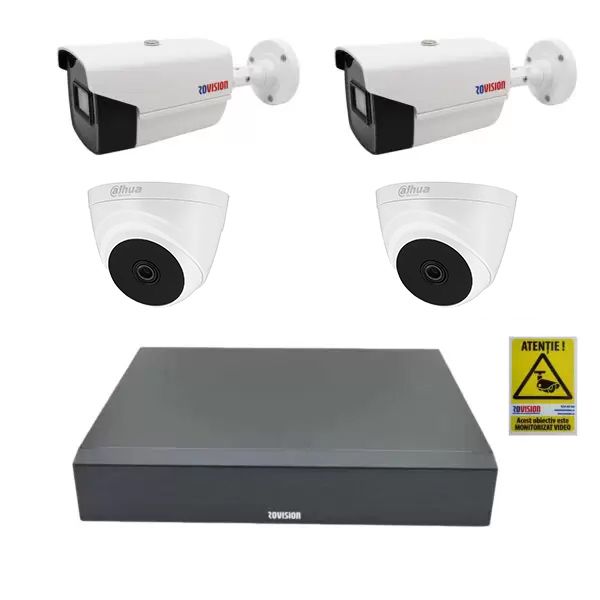

The system includes:

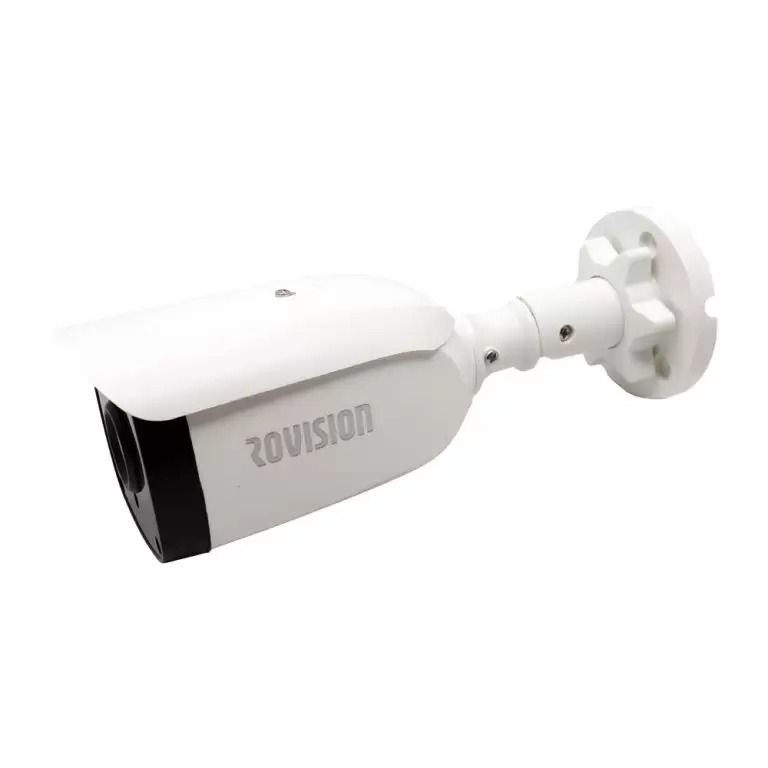

– 2 x outdoor surveillance cameras 1080P full HD AHD 20m IR ZAN30W-200
-DVR ROV504 5 megapixel N 4 compression channel 6 in 1 Rovision H265
– 2 x 4 in 1 surveillance cameras inside 1080P full HD AHD 3.6 mm lens 3 20m IR LED ARRAY CACT-IRDOMES-200A
– 1 x accessories you need for this system can be found on site as required (CLICK – & gt; cabluri plugs food sources disk etc …)

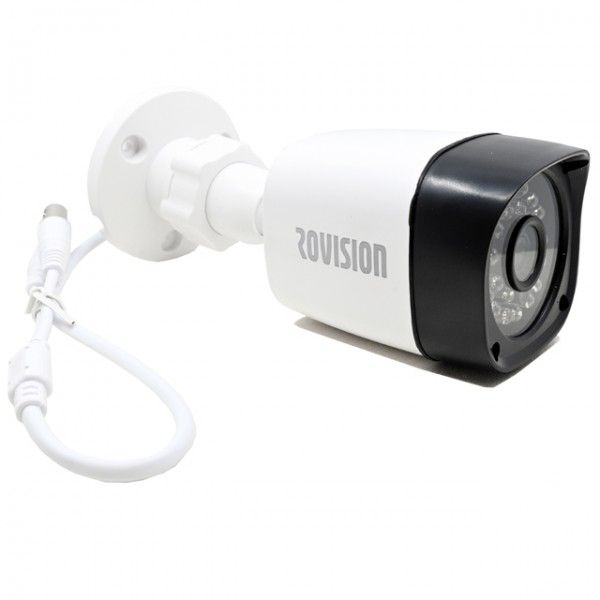

ZAN30W-200 is a surveillance camera for outdoor with full HD 1080p fixed lens, 20m infrared LED 24, AHD technology.
Building on AHD, surveillance camera video ZAN30W-200 is suitable for outdoor installation. The class of weather protection IP66 , which can operate in temperatures ranging between -20 to +50 degrees Celsius.
The camera sensor includes a 1 / 2.9 ” CCD Aptina FH8536 (V30E) + AR0337, resolution is 1920×1080 . It can transmit up to the maximum distance of 500m.
The camera comes with 3.6 mm fixed lens, which is useful for areas where objects are far away from the camera. This special frame construction with plastic metallic recommend room monitoring inputs in institutions or buildings, parking lots, shopping centers, garages and office buildings.
room construction remark that improve performance LEDs 24 of the chamber during the night. IR sensor allows visibility of objects in the dark up to 20m .
The camera comes with the Backlight compensation , it can compensate for background lighting, the camera automatically optimizes exposure. Camera also IR-Cut filter , that provides color images during the day. With the decrease in light during the day, the camera automatically switches to night mode using infrared light to provide black and white images of high quality.
We note function white balance camera that allows color adjustment so that the colors look more natural.
List functions continue with presence sensor included , which increases versitilitatea room.
is needed 12V +/- 10%, 450mA for monitoring the operation of the camera. Turn extremely affordable price in a safe room for more limited budgets and simple monitoring scenarios.
Surveillance Camera Outdoor Weatherproof HD-200 ZAN30W CRIS 36 200N
Sensor 1 / 2.9 “CCD Aptina FH8536 (V30E) + AR0337
resolution of 1080P / 2MP
Low illumination 0.01Lux
transmission distance up to 500 m
fixed lens, 3.6 mm
metallic plastic casing
LED 24 pcs
IR distance 20 m
IR Cut Filter
Operating temperature -20C + 50C
10% ± 12V, 450mA (Power Supply is included)
Size 82mmx251mm (L)

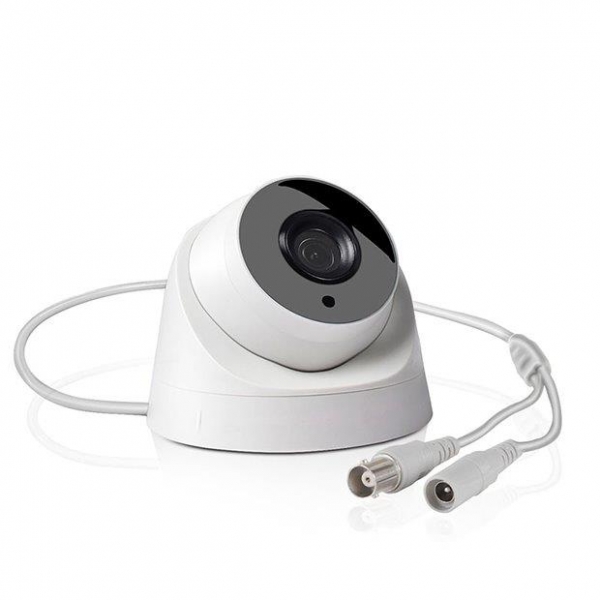

INTERIOR SURVEILLANCE CAMERA 1080P FULL HD AHD, lens 3.6 mm 3 20M IR LED ARRAY
TECHNICAL Kit 4 video surveillance cameras combined:
Technology ANALOG / AHD / CVI / TURBO HD
Image Sensor 1/3 “Aptina CMOS Sensor
Resolution 2MP / 1920x1080p
Minimum illumination 0.01 Lux
Transmission distance up to 500 meters
3.6 mm fixed lens
3 Array LED
infrared distance 20 meters
IR Cut Filter
WDR (Auto White Balance)
Operating temperature -20C + 50C
FH8536 DSP (V30) + AR0237
10% ± 12V, 400 mA (power supply is not included)
93x65mm size (L)
Access OSD by UTC Direct Control via DVR interface (right mouse click, and enter the function “coaxial control”)
Looks very nice, good lighting, an ideal solution for surveillance at night!

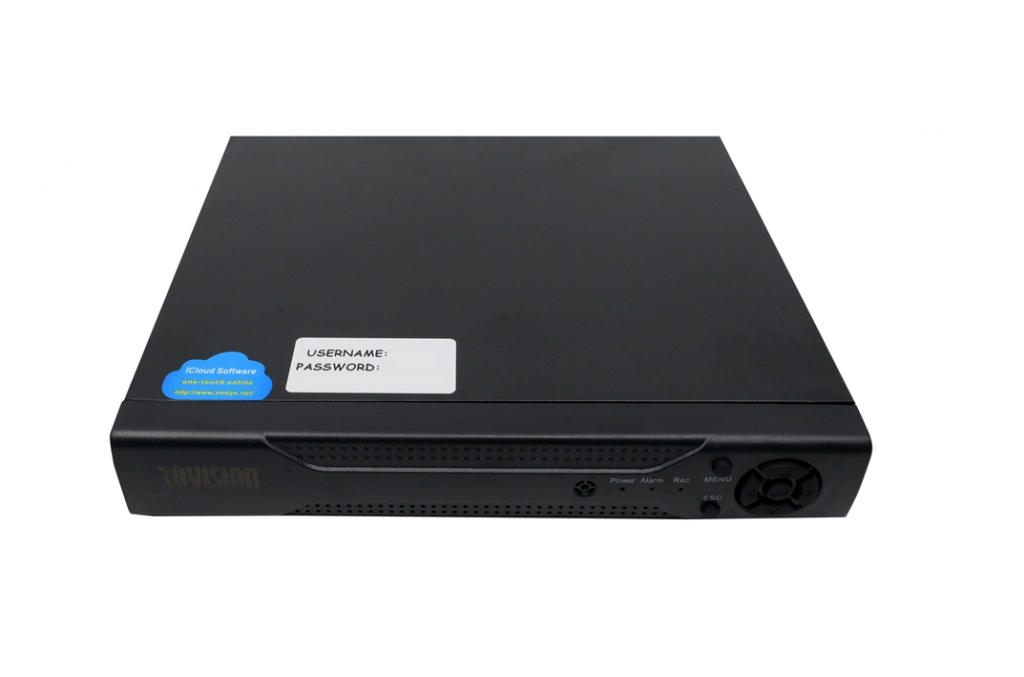

5 megapixel ROV504 DVR technology AHD-N 4 channels 6 in 1 Rovision H.265 compression.
It works with any room AHD up to 5 megapixels.
using an intuitive graphical interface icons
View real-time 25fps per channel at 1080P resolution and 5MP cameras AHD-N on all channels
Register 1080P / 14fps, 720P / 25fps, 960H / 25fps
Video compression H.265X (reduce file sizes and enable longer periods)
Storage HDD (up to 6TB) is not included
own software for live viewing on your phone by using the Cloud application downloaded from the app store for the phone
Ports VGA and HDMI for connecting to any TV / monitor
USB ports for peripherals and fast backup USB
RJ45 port for connecting to the Internet
Power 12V / 2A
Bolts for fixing HDD
Power 12V / 2.5A
Power consumption & lt; 15W (faraHDD)
Working Environment: Temperature: 0 ℃ – + 55 ℃, Humidity: 10% -90%, Atm: 86kPa-106kPa
Size 233x210x45 mm
Weight 510 g (without HDD)
Works with any cameras up to 5 megapixels AHD
ROOMS effective Dark
Thanks to the latest generation image sensor that works with built-in IR illuminator, the rooms offer clear images without interference and in low light or nonexistent.
LIVE ON MONITORING TELEPHONE / PC / tablet
With some settings you will have access from anywhere, via the Internet, the video system using any smartphone, tablet, PC. You can watch live cameras or access stored records.
The cost of the package will offer a financial advantage to purchasing individual products. Also, the package includes VAT and the kit is fully customizable. You can start with the current package as a base and from there to reach the ideal solution for your problem. Just contact us and we will offer you the support you need.

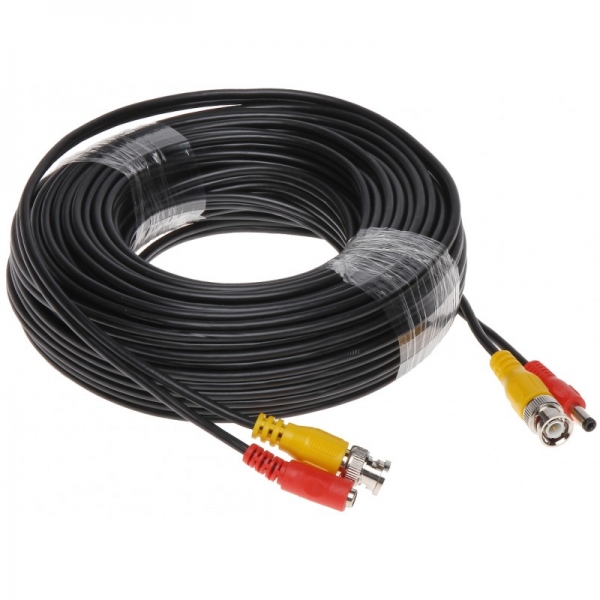

The accessories you need for this can be found on site as required (CLICK – & gt; cables, plugs surse disk etc …)
