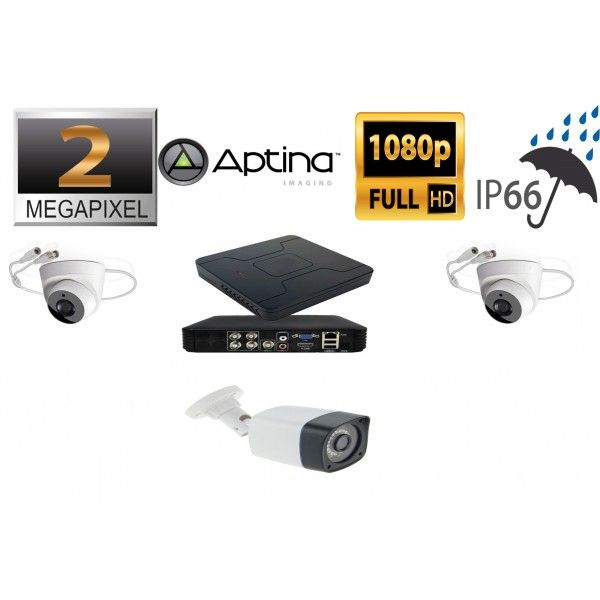

Joint Surveillance Kit 3 cameras FULL HD
Kit video surveillance Combination of 3 cameras: 1 outside with a resolution of 2 MP, 1080p full hd IR20m and two rooms inside resolution 2MP IR20m, software for viewing in real time on your phone, PC, laptop . You will find here

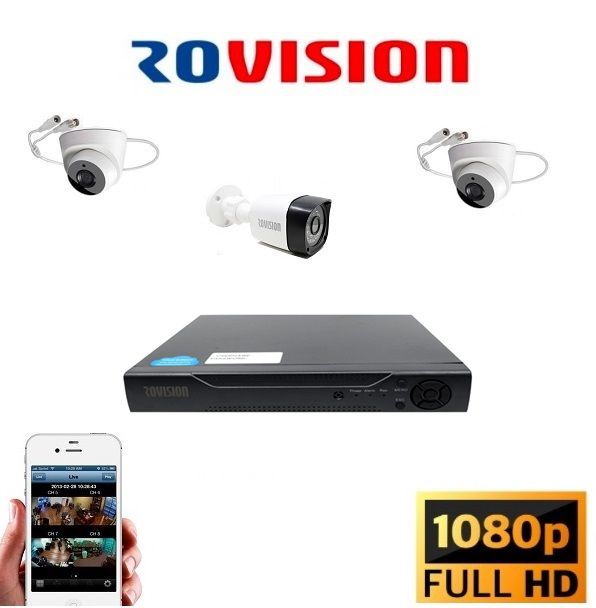

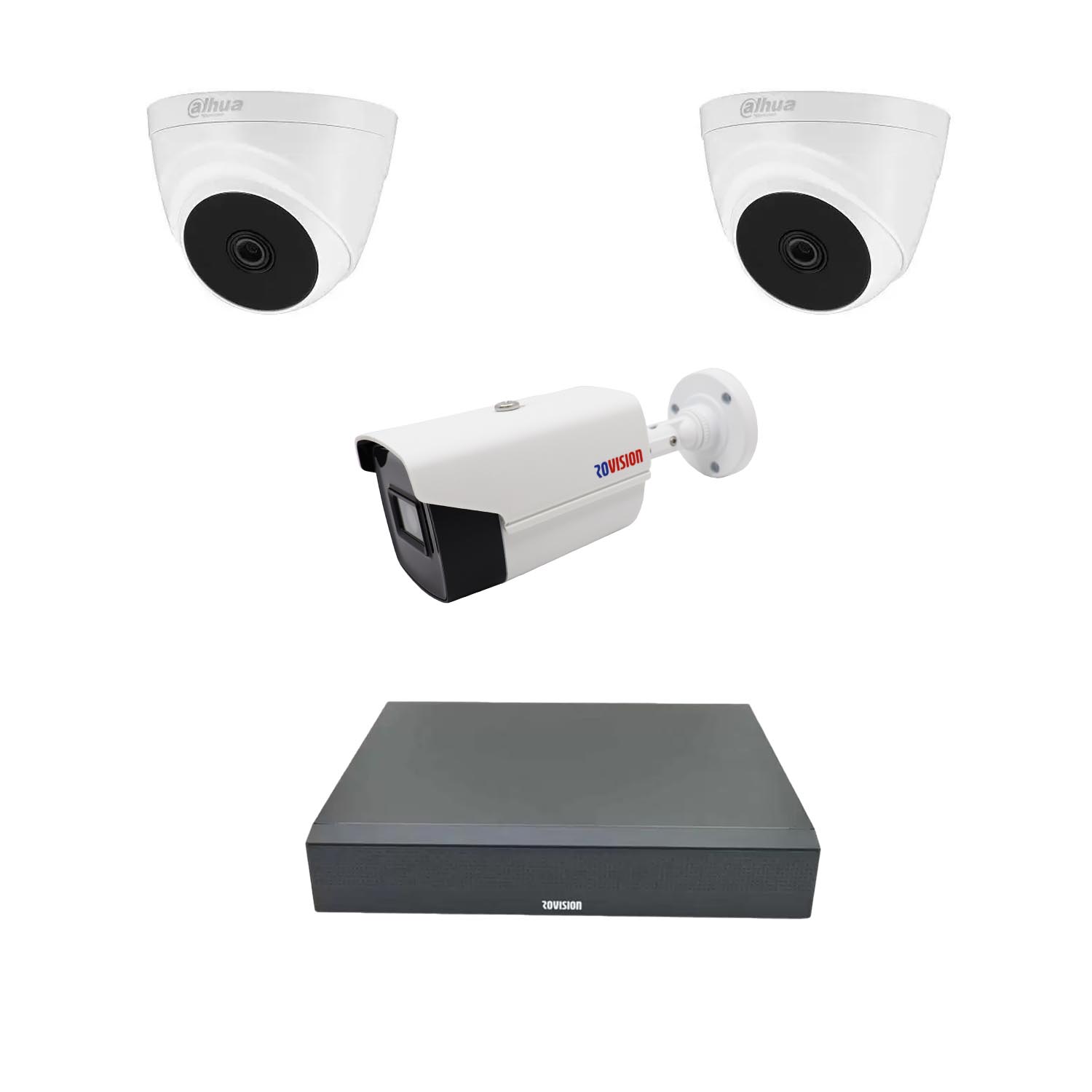

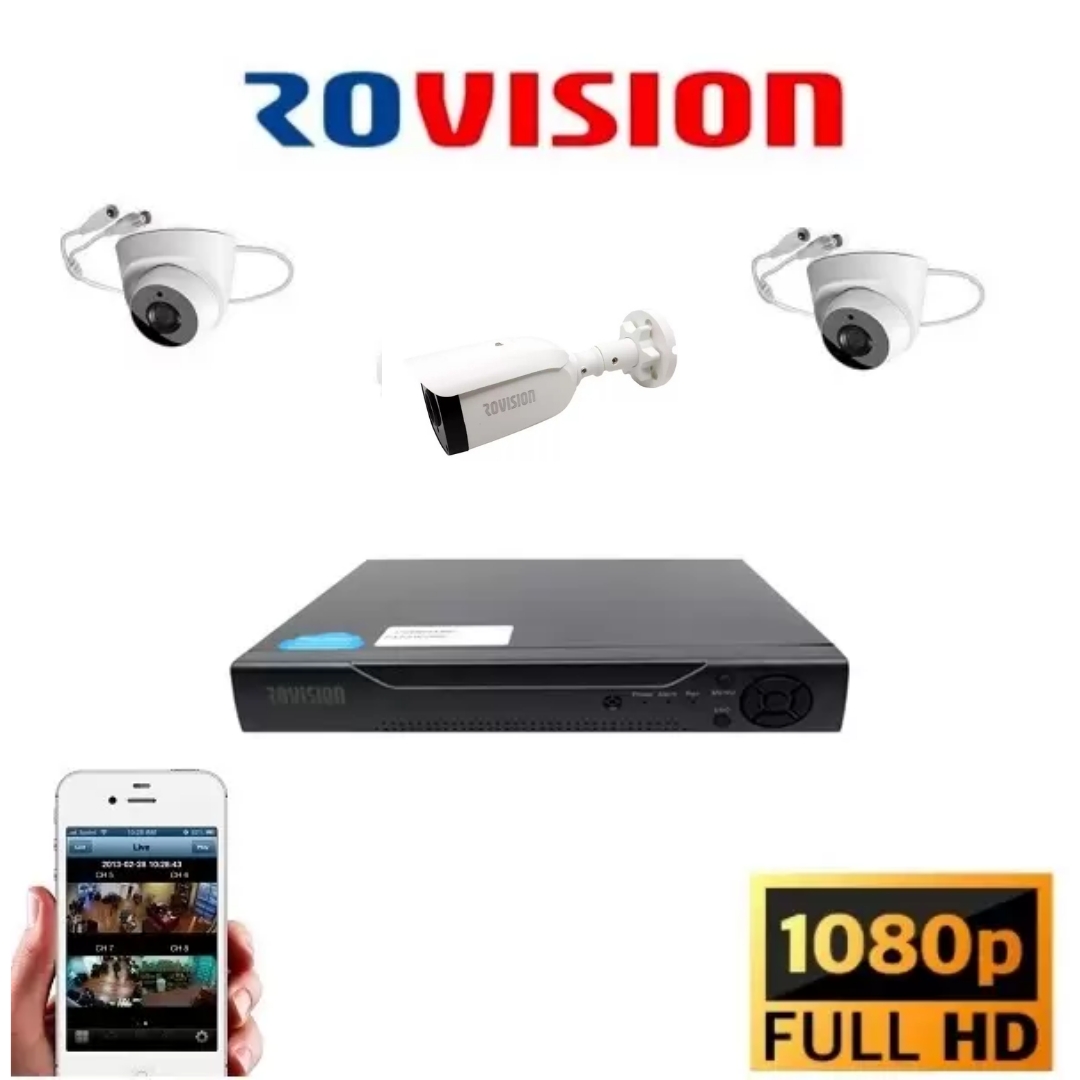

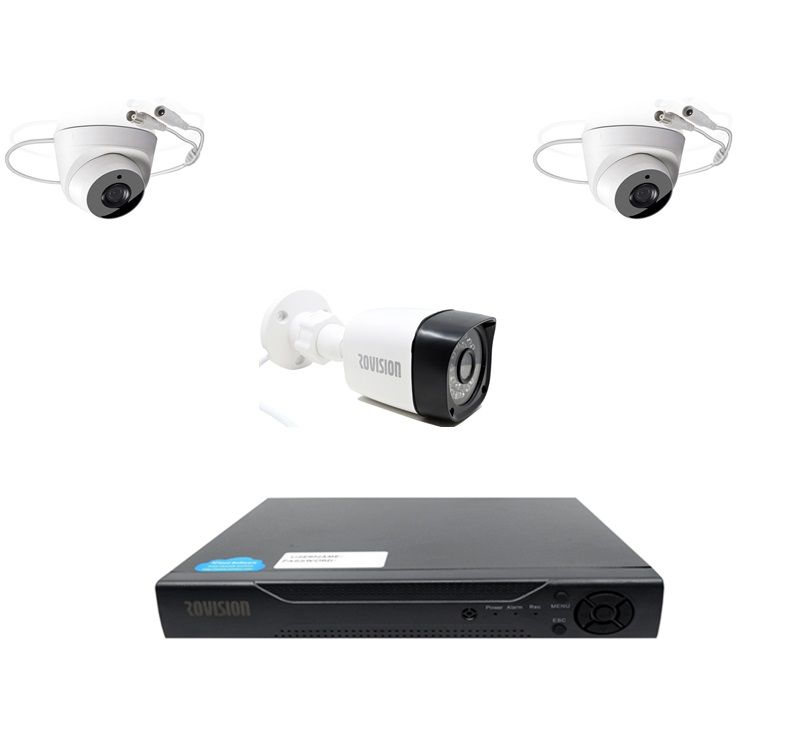

Joint Surveillance Kit 3 cameras. Content:
– 1 outdoor surveillance cameras 1080P full HD AHD 30m IR ZAN30W-200
– two interior surveillance cameras 4 in 1 AHD 1080P full HD 3.6 mm lens 3 20m IR LED ARRAY CACT-IRDOMES-200A
– 1 x DVR ROV 504 Rovision 5 megapixel N 4 channels 6 in 1 compression H265

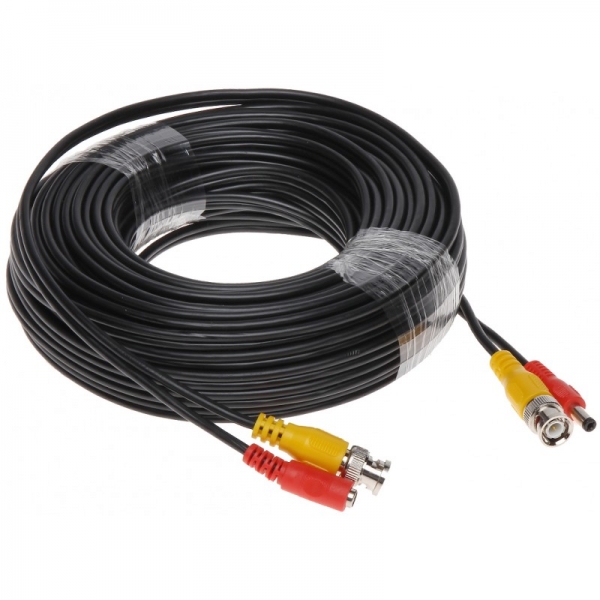

accessories you need to kit can be found on site as needed (CLICK – & gt; cables, plugs food sources HDD etc. ..)
Surveillance Camera Resolution
Full HD 2-2.4 MP
Number of cameras / kit
Type surveillance kit
IR – Infrared
Number Channel DVR
Other camera functions
video surveillance kit details mixed 3 cameras:

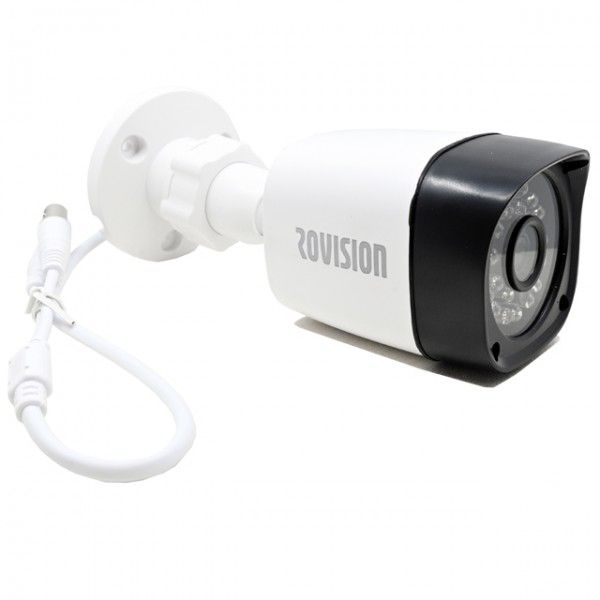

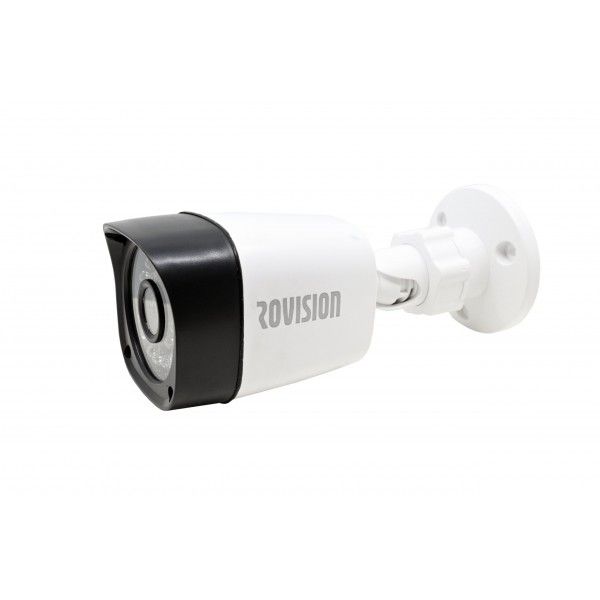

1. ZAN30W-200 is a surveillance camera for outdoor full HD 1080p lens fixed 20m infrared lens 24 LED technology AHD.
Building on AHD, surveillance camera video ZAN30W-200 is suitable for outdoor installation. The class of weather protection IP66 , which can operate in temperatures ranging between -20 to +50 degrees Celsius.
The camera sensor includes a 1 / 2.9 ” CCD Aptina FH8536 (V30E) + AR0337, resolution is 1920×1080 . It can transmit up to the maximum distance of 500m.
The camera comes with 3.6 mm fixed lens, which is useful for areas where objects are far away from the camera. This special frame construction with plastic metallic recommend room monitoring inputs in institutions or buildings, parking lots, shopping centers, garages and office buildings.
room construction remark that improve performance LEDs 24 of the chamber during the night. IR sensor allows visibility of objects in the dark up to 20m .
The camera comes with the Backlight compensation , it can compensate for background lighting, the camera automatically optimizes exposure. Camera also IR-Cut filter , that provides color images during the day. With the decrease in light during the day, the camera automatically switches to night mode using infrared light to provide black and white images of high quality.
We note function white balance camera that allows color adjustment so that the colors look more natural.
List functions continue with presence sensor included , which increases the quality of the camera.
is needed 12V +/- 10%, 450mA for monitoring the operation of the camera. Power supply is not included, but extremely affordable price turn into a safe room for more limited budgets and simple monitoring scenarios.
Surveillance Camera Outdoor Weatherproof HD-200 ZAN30W CRIS 36 200N
Sensor 1 / 2.9 “CCD Aptina FH8536 (V30E) + AR0337
resolution of 1080P / 2MP
Low illumination 0.01Lux
transmission distance up to 500 m
fixed lens, 3.6 mm
metallic plastic casing
LED 24 pcs
IR distance 20 m
IR Cut Filter
Operating temperature -20C + 50C
10% ± 12V, 450mA (the power supply is not included)
Size 82mmx251mm (L)
2.Camera surveillance 2MP Rovision CACT-IRDOMES-200A
Features and functions
You need a room for indoor surveillance? You want a room to give you clear images of distant objects? This model is exactly what need for your home. Ideal for indoor, with a pleasant design, 2MP camera surveillance Rovision CACT-IRDOMES-200A captures all the images in your home when you miss.
Features Rovision CACT-IRDOMES-200A Surveillance Kit Combination of 3 rooms
IR LED night vision
Because fixed 3.6 mm lens, you get detailed images of distant objects. You to be much easier to distinguish the face of a potential intruder, if needed. Even at night, the camera performs very well. Because sensor infrared images at night are very clear and qualitative. Moreover, the camera is equipped with IR-cut filter that adjusts instantly to the light to be clear recorded images without points of light or very dark parts. For the image to be perfect and at night, in addition to the IR sensor, the camera is equipped with three LED ARRAY, they offer a higher quality of recorded images at night over a distance of 20 m.
1080p / 2MP
The CACT-IRDOMES-200A from Rovision is equipped with the proper resolution. 2MP Full HD / 1080p monitor is ideal for spaces up to 200 square meters, while benefiting and details and facial recognition distance up to 14 m.
Surveillance Camera 2MP with nice design and resistant housing
Rovision CACT-IRDOMES-200A has a nice design and elegant, this is why it is ideal for the interior. You can mount the room, if you want to always know what’s going on when you are not near it. The sensor is equipped with this camera is an intelligent sensor that starts recording only when it detects movement in the camera. Weighing only 165g and dimensions 93X65mm, this camera is ideal mounted anywhere, both ceiling and wall. Metalized plastic casing gives strength to not be destroyed by criminals. In addition, the camera has an IP66 degree of protection that gives resistance to external factors such as dust and water.
Other functions and features
ANALOG technology / AHD / CVI / TURBO HD
Sensor 1/3 “Aptina CMOS Sensor
FH8536 DSP (V30) + AR0237
Low illumination 0.01Lux
transmission distance up to 500
Operating temperature -20C + 50C
Access the OSD by UTC Direct Control via DVR interface (right mouse click, and enter the function “coaxial control

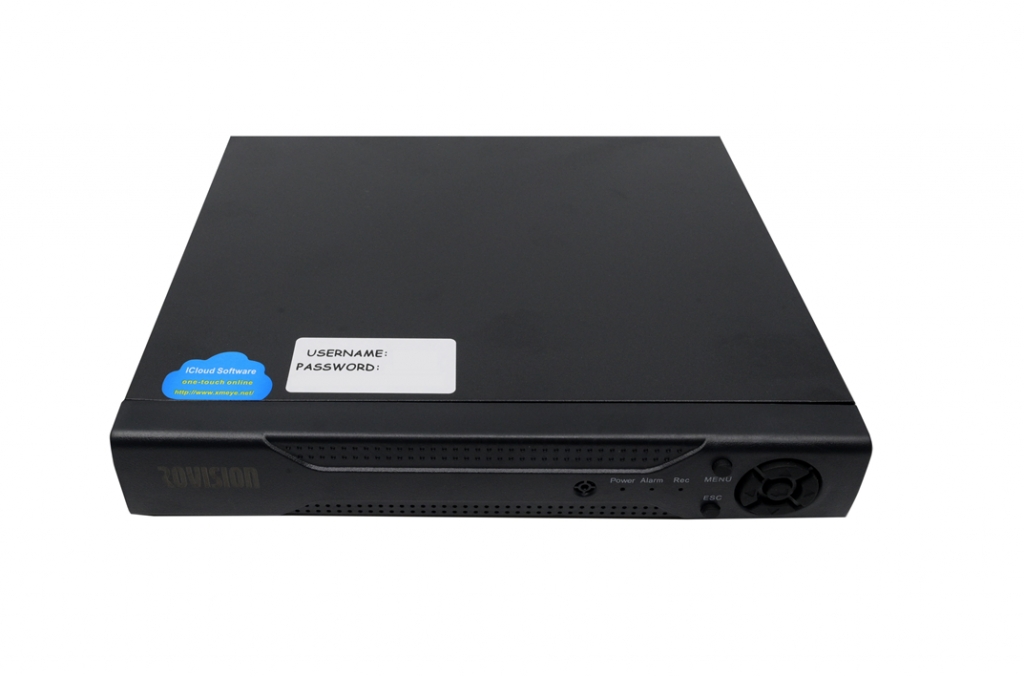

5 megapixel-N 3.DVR technology ROV504 AHD 4 channels 6 in 1 Rovision H.265 compression.
It works with any room AHD up to 5 megapixels.
using an intuitive graphical interface icons
View real-time 25fps per channel at 1080P resolution and 5MP cameras AHD-N on all channels
Register 1080P / 14fps, 720P / 25fps, 960H / 25fps
Video compression H.265X (reduce file sizes and enable longer periods)
Storage HDD (up to 6TB) is not included
own software for live viewing on your phone by using the Cloud application downloaded from the app store for the phone
Ports VGA and HDMI for connecting to any TV / monitor
USB ports for peripherals and fast backup USB
RJ45 port for connecting to the Internet
Power 12V / 2A
Bolts for fixing HDD
Power 12V / 2.5A
Power consumption & lt; 15W (faraHDD)
Working Environment: Temperature: 0 ℃ – + 55 ℃, Humidity: 10% -90%, Atm: 86kPa-106kPa
Size 233x210x45 mm
Weight 510 g (without HDD)
Works with any cameras up to 5 megapixels AHD
CAMERAS effective Dark
Thanks to the latest generation image sensor that works with built-in IR illuminator, the cameras offer clear images without interference and in low light or nonexistent.
LIVE ON MONITORING TELEPHONE / PC / tablet
With some settings you will have access from anywhere, via the Internet, the video system using any smartphone, tablet, PC. You can watch live cameras or access stored records.
The cost of the package will offer a financial advantage in purchasing individual products. Also, the package includes VAT and the kit is fully customizable. You can start with the current package as a base and from there to reach the ideal solution for your problem. Just contact us and we provide the support you need.
Surveillance Kit professional, very good value for money. Accessories you need to kit can be found on site as required (CLICK – & gt; cables jacks food sources disk etc …) In this kit can be added one camera.
